| Part Number | NSR1030QMUTAG | NSR1030QMUTWG | NSR2030QMUTAG |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Discontinued at Digi-Key | Active | Active |
| Diode Type | Single Phase | Single Phase | Single Phase |
| Technology | Schottky | Schottky | Schottky |
| Voltage - Peak Reverse (Max) | 30 V | 30 V | 30 V |
| Current - Average Rectified (Io) | 1 A | 1 A | 2 A |
| Voltage - Forward (Vf) (Max) @ If | 600 mV @ 1 A | 600 mV @ 1 A | 650 mV @ 2 A |
| Current - Reverse Leakage @ Vr | 20 µA @ 30 V | 20 µA @ 30 V | 20 µA @ 30 V |
| Operating Temperature | 125°C (TJ) | 125°C (TJ) | 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

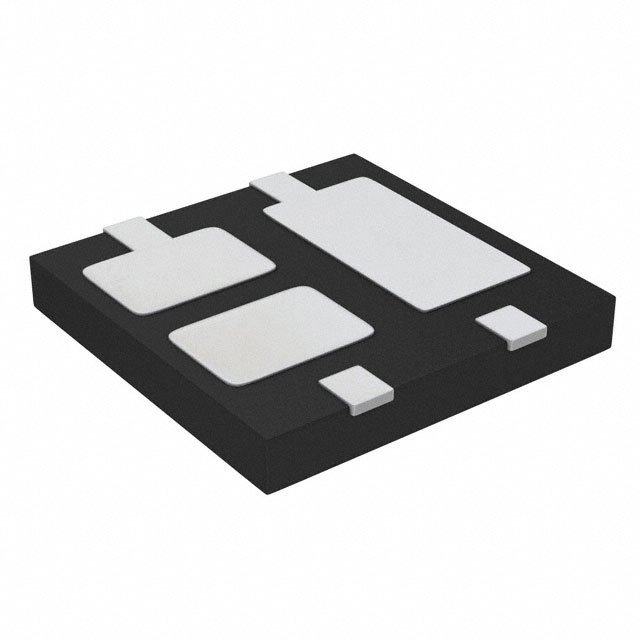

| Package / Case | 4-UDFN Exposed Pad | 4-UDFN Exposed Pad | 4-UDFN Exposed Pad |
| Supplier Device Package | 4-UDFN (3x3) | 4-UDFN (3x3) | 4-UDFN (3.5x3.5) |
