Please send RFQ , we will respond immediately.
| Part Number | NSR0620SP2T5G | NSR0620P2T5G |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Active | Active |
| Diode Type | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 20 V | 20 V |
| Current - Average Rectified (Io) | 500mA (DC) | 500mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 520 mV @ 500 mA | 520 mV @ 500 mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | 4 ns |
| Current - Reverse Leakage @ Vr | 9 µA @ 20 V | 9 µA @ 20 V |
| Capacitance @ Vr, F | - | 12pF @ 1V, 1MHz |
| Mounting Type | - | Surface Mount |

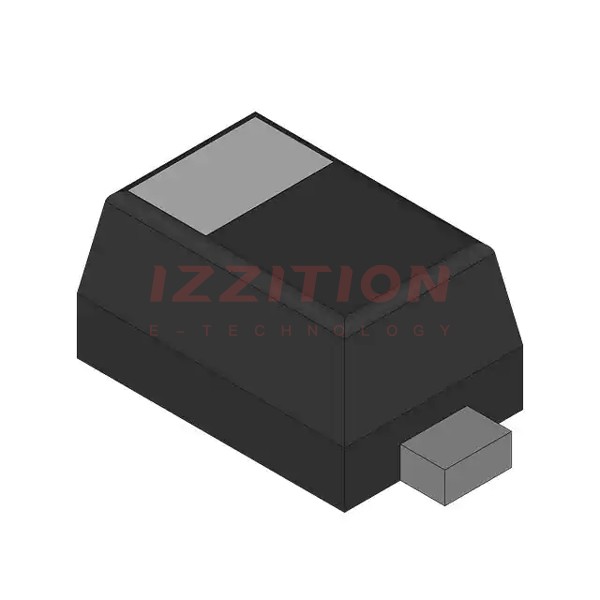

| Package / Case | - | SOD-923 |
| Supplier Device Package | - | SOD-923 |
| Operating Temperature - Junction | -55°C ~ 125°C | -55°C ~ 125°C |
