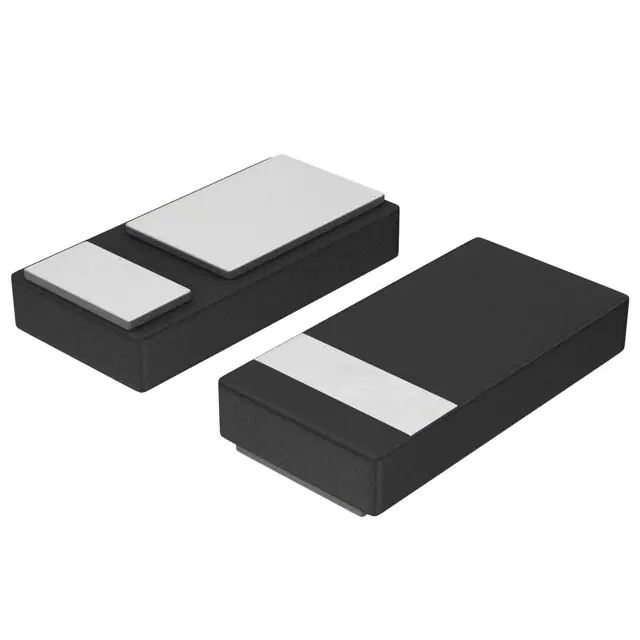

| Part Number | NSR05F40NXT5G | NSVR05F40NXT5G | NSR05F40QNXT5G | NSR05F20NXT5G | NSR05F30NXT5G |
|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Obsolete | Active | Active |
| Diode Type | Schottky | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 40 V | 40 V | 40 V | 20 V | 30 V |
| Current - Average Rectified (Io) | 500mA (DC) | 500mA (DC) | 500mA (DC) | 500mA (DC) | 500mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 460 mV @ 500 mA | 460 mV @ 500 mA | 460 mV @ 500 mA | 430 mV @ 500 mA | 430 mV @ 500 mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - | - | - |
| Current - Reverse Leakage @ Vr | 75 µA @ 40 V | 75 µA @ 40 V | 75 µA @ 40 V | 75 µA @ 20 V | 75 µA @ 30 V |
| Capacitance @ Vr, F | - | 35pF @ 10V, 1MHz | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0402 (1006 Metric) | 0402 (1006 Metric) | 0402 (1006 Metric) | 0402 (1006 Metric) | 0402 (1006 Metric) |
| Supplier Device Package | 2-DSN (1x0.6), (0402) | 2-DSN (1x0.6), (0402) | 2-DSN (1x0.6), (0402) | 2-DSN (1x0.6), (0402) | 2-DSN (1x0.6), (0402) |
| Operating Temperature - Junction | 150°C (Max) | -40°C ~ 150°C | 150°C (Max) | 150°C (Max) | 150°C (Max) |
