onsemi-NSR05402NXT5G - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	40 V
Current - Average Rectified (Io):	500mA (DC)
Voltage - Forward (Vf) (Max) @ If:	620 mV @ 500 mA
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	20 µA @ 40 V
Capacitance @ Vr, F:	9.5pF @ 5V, 1MHz
Mounting Type:	Surface Mount
Package / Case:	0201 (0603 Metric)
Supplier Device Package:	2-DSN (0.60x0.30)
Operating Temperature - Junction:	-55°C ~ 150°C

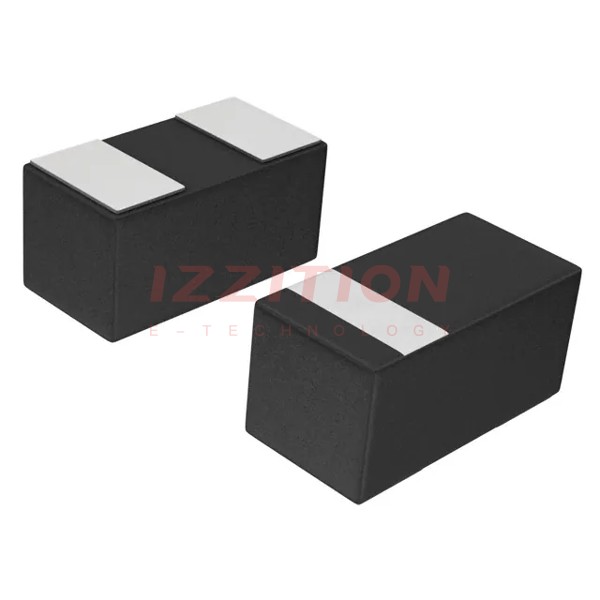

onsemi NSR05402NXT5G
