NSR05301MX4T5G
  • Share:

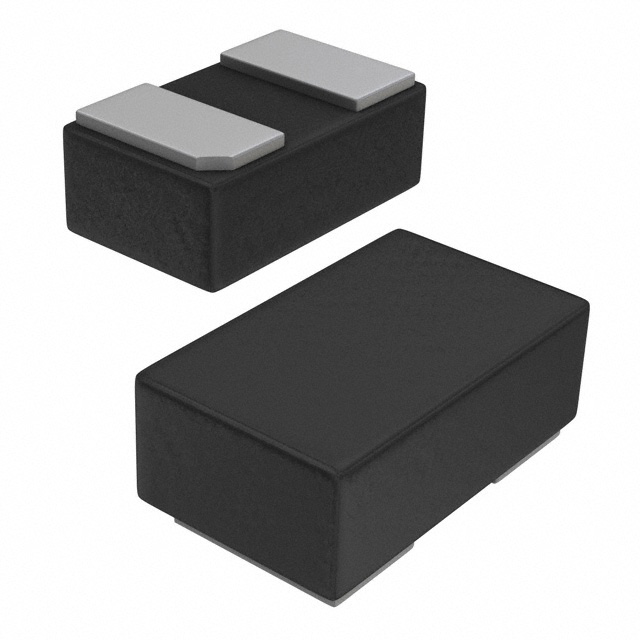

onsemi NSR05301MX4T5G

Manufacturer No:
NSR05301MX4T5G
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Datasheet:
NSR05301MX4T5G Datasheet
ECAD Model:
-
Description:
01005_TRENCH_SCHOTTKY_30V
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):30 V
Current - Average Rectified (Io):500mA (DC)
Voltage - Forward (Vf) (Max) @ If:800 mV @ 500 mA
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):11 ns
Current - Reverse Leakage @ Vr:100 µA @ 30 V
Capacitance @ Vr, F:19pF @ 5V, 1MHz
Mounting Type:Surface Mount
Package / Case:01005 (0402 Metric)
Supplier Device Package:2-X4DFN (0.45x0.24)
Operating Temperature - Junction:-55°C ~ 125°C
0 Remaining View Similar

In Stock

$0.47
563

Please send RFQ , we will respond immediately.
