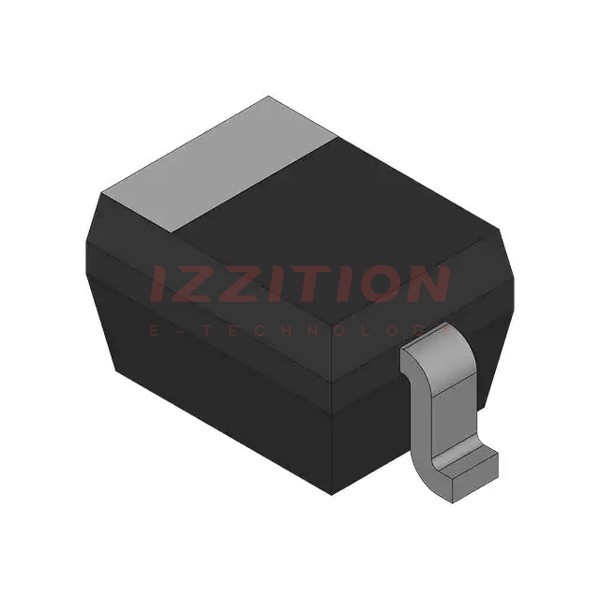

| Part Number | NSR0320MW2T1 | NSR0320MW2T1G |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Active | Active |
| Diode Type | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 20 V | 20 V |
| Current - Average Rectified (Io) | 1A (DC) | 1A (DC) |
| Voltage - Forward (Vf) (Max) @ If | 500 mV @ 900 mA | 500 mV @ 900 mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - |
| Current - Reverse Leakage @ Vr | 50 µA @ 15 V | 50 µA @ 15 V |
| Capacitance @ Vr, F | 29pF @ 5V, 1MHz | 29pF @ 5V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | SC-76, SOD-323 | SC-76, SOD-323 |
| Supplier Device Package | SOD-323 | SOD-323 |
| Operating Temperature - Junction | -55°C ~ 125°C | -55°C ~ 125°C |
