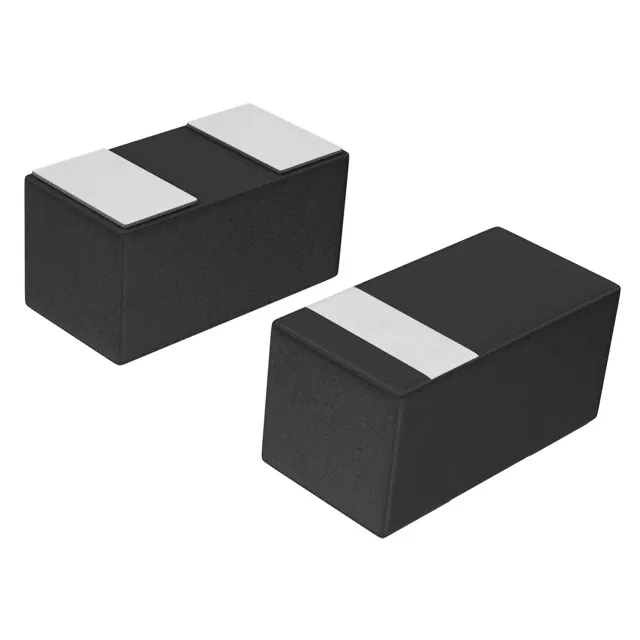

| Part Number | NSR02L30NXT5G | NSR01L30NXT5G | NSR02F30NXT5G |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active |
| Diode Type | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V | 30 V | 30 V |
| Current - Average Rectified (Io) | 200mA (DC) | 100mA (DC) | 200mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 580 mV @ 200 mA | 530 mV @ 100 mA | 550 mV @ 200 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | - | - | - |
| Current - Reverse Leakage @ Vr | 3 µA @ 30 V | 3 µA @ 30 V | 50 µA @ 30 V |
| Capacitance @ Vr, F | 7pF @ 5V, 1MHz | 7pF @ 5V, 1MHz | 7pF @ 5V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) |
| Supplier Device Package | 2-DSN (0.60x0.30) | 2-DSN (0.60x0.30) | 2-DSN (0.60x0.30) |
| Operating Temperature - Junction | 150°C (Max) | 150°C (Max) | 125°C (Max) |
