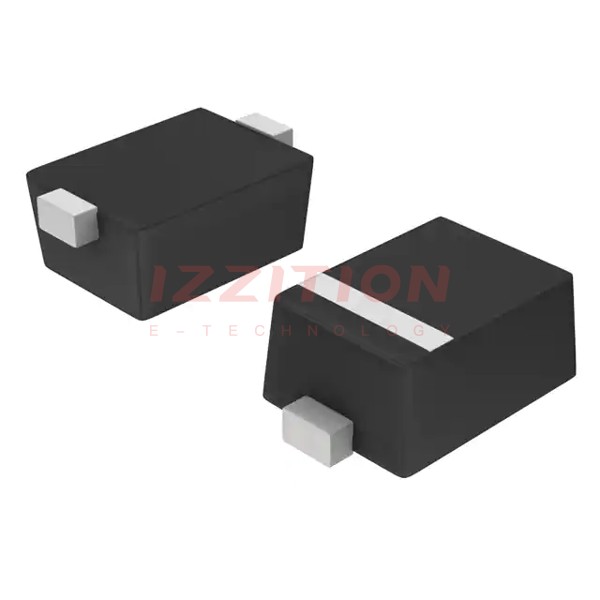

| Part Number | NSR0240P2T5G | NSR0340P2T5G | NSVR0240P2T5G | NSR0240V2T5G | NSR0140P2T5G | NSR0230P2T5G |
|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active | Active | Active | Active |
| Diode Type | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 40 V | 40 V | 40 V | 40 V | 30 V | 30 V |
| Current - Average Rectified (Io) | 200mA (DC) | 200mA (DC) | 200mA (DC) | 250mA (DC) | 70mA (DC) | 200mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 600 mV @ 200 mA | 560 mV @ 200 mA | 600 mV @ 200 mA | 700 mV @ 200 mA | 350 mV @ 1 mA | 500 mV @ 200 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Fast Recovery =< 500ns, > 200mA (Io) | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | - | 3 ns | - | 3 ns | - | - |
| Current - Reverse Leakage @ Vr | 5 µA @ 40 V | 20 µA @ 40 V | 5 µA @ 40 V | 10 µA @ 40 V | 500 nA @ 30 V | 10 µA @ 10 V |
| Capacitance @ Vr, F | 7pF @ 1V, 1MHz | 4pF @ 5V, 1MHz | 7pF @ 1V, 1MHz | 4pF @ 5V, 1MHz | 2.5pF @ 1V, 1MHz | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOD-923 | SOD-923 | SOD-923 | SC-79, SOD-523 | SOD-923 | SOD-923 |
| Supplier Device Package | SOD-923 | SOD-923 | SOD-923 | SOD-523 | SOD-923 | SOD-923 |
| Operating Temperature - Junction | -55°C ~ 150°C | -55°C ~ 125°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 125°C | -55°C ~ 125°C |
