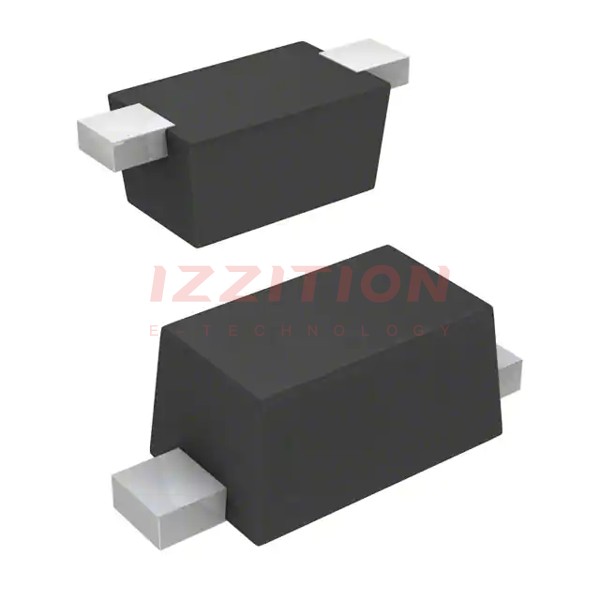

| Part Number | NSR0230M2T5G | NSR0230P2T5G | NSVR0230M2T5G | NSR0130M2T5G |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active | Obsolete |
| Diode Type | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V | 30 V | 30 V | 30 V |
| Current - Average Rectified (Io) | 200mA (DC) | 200mA (DC) | 200mA (DC) | 100mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 500 mV @ 200 mA | 500 mV @ 200 mA | 500 mV @ 200 mA | 525 mV @ 100 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | - | - | - | - |
| Current - Reverse Leakage @ Vr | 100 µA @ 30 V | 10 µA @ 10 V | 100 µA @ 30 V | 3 µA @ 30 V |
| Capacitance @ Vr, F | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOD-723 | SOD-923 | SOD-723 | SOD-723 |
| Supplier Device Package | SOD-723 | SOD-923 | SOD-723 | SOD-723 |
| Operating Temperature - Junction | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
