onsemi-NSR02100HT1G - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	100 V
Current - Average Rectified (Io):	200mA (DC)
Voltage - Forward (Vf) (Max) @ If:	950 mV @ 200 mA
Speed:	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	150 nA @ 100 V
Capacitance @ Vr, F:	4pF @ 1V, 1MHz
Mounting Type:	Surface Mount
Package / Case:	SC-76, SOD-323
Supplier Device Package:	SOD-323
Operating Temperature - Junction:	-55°C ~ 150°C

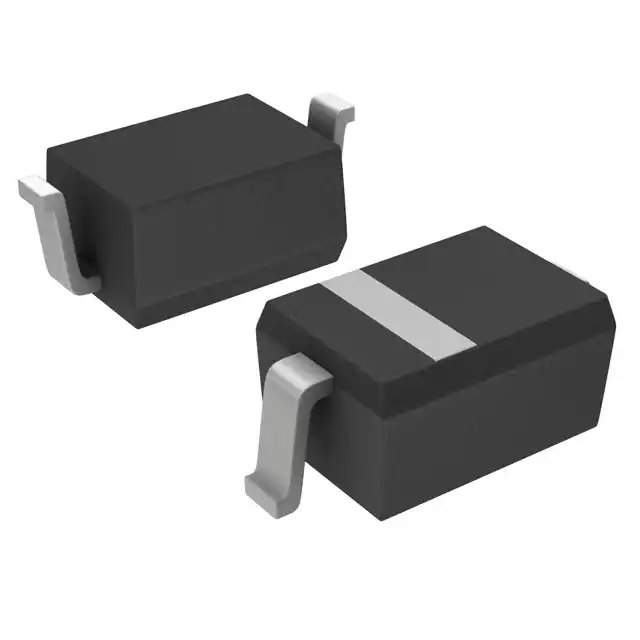

onsemi NSR02100HT1G
