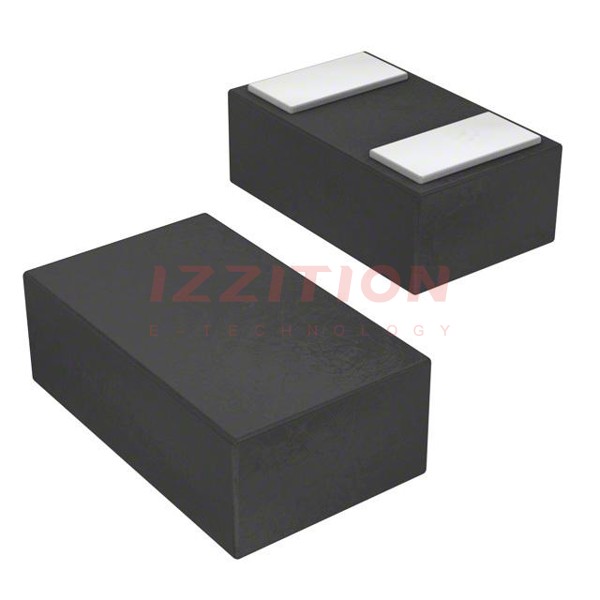

| Part Number | NSR01F30MXT5G | NSR02F30MXT5G | NSR01L30MXT5G | NSR01F30NXT5G |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active | Active |
| Diode Type | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V | 30 V | 30 V | 30 V |
| Current - Average Rectified (Io) | 100mA (DC) | 200mA (DC) | 100mA (DC) | 100mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 600 mV @ 100 mA | 600 mV @ 200 mA | 460 mV @ 10 mA | 500 mV @ 100 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | - | - | - | - |
| Current - Reverse Leakage @ Vr | 50 µA @ 30 V | 50 µA @ 30 V | 500 nA @ 30 V | 50 µA @ 30 V |
| Capacitance @ Vr, F | 0.9pF @ 10V, 1MHz | - | - | 7pF @ 5V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) |
| Supplier Device Package | 2-X3DFN (0.6x0.3) (0201) | 2-X3DFN (0.6x0.3) (0201) | 2-X3DFN (0.6x0.3) (0201) | 2-DSN (0.60x0.30) |
| Operating Temperature - Junction | 125°C (Max) | -55°C ~ 125°C | 150°C (Max) | 125°C (Max) |
