| Part Number | NSR0140P2T5H | NSR0130P2T5H | NSR0140P2T5G |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active |
| Diode Type | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V | 30 V | 30 V |
| Current - Average Rectified (Io) | 70mA (DC) | 100mA (DC) | 70mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 350 mV @ 1 mA | 525 mV @ 100 mA | 350 mV @ 1 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | - | - | - |
| Current - Reverse Leakage @ Vr | 500 nA @ 30 V | - | 500 nA @ 30 V |
| Capacitance @ Vr, F | 2.5pF @ 1V, 1MHz | - | 2.5pF @ 1V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

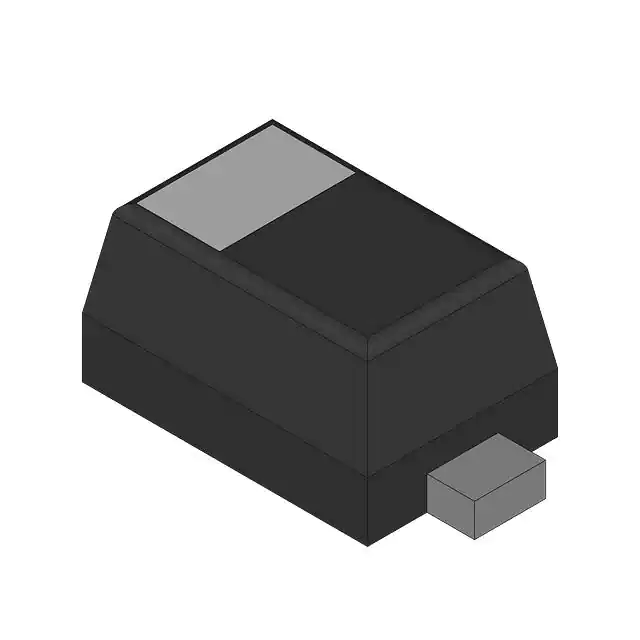

| Package / Case | SOD-923 | SOD-923 | SOD-923 |
| Supplier Device Package | SOD-923 | SOD-923 | SOD-923 |
| Operating Temperature - Junction | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
