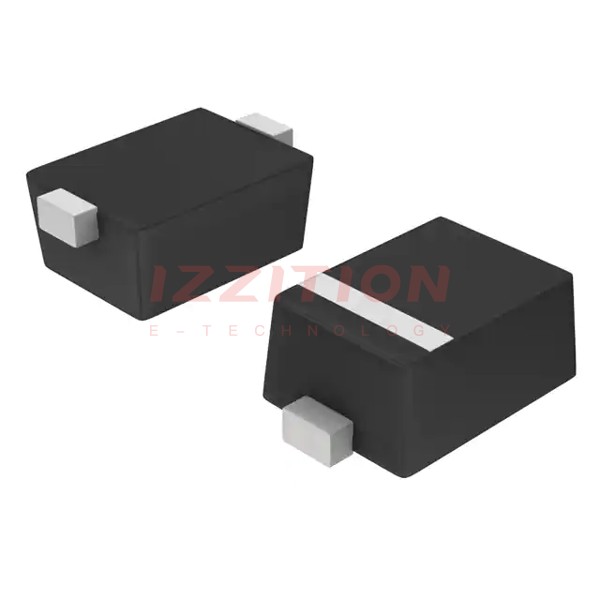

| Part Number | NSR0130P2T5G | NSR0530P2T5G | NSR0130P2T5H | NSR0230P2T5G | NSR01L30P2T5G | NSR0140P2T5G | NSR0170P2T5G | NSR0130M2T5G |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Obsolete |
| Diode Type | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V | 30 V | 30 V | 30 V | 30 V | 30 V | 70 V | 30 V |
| Current - Average Rectified (Io) | 100mA (DC) | 500mA (DC) | 100mA (DC) | 200mA (DC) | 100mA (DC) | 70mA (DC) | 70mA (DC) | 100mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 525 mV @ 100 mA | 620 mV @ 500 mA | 525 mV @ 100 mA | 500 mV @ 200 mA | 530 mV @ 100 mA | 350 mV @ 1 mA | 730 mV @ 15 mA | 525 mV @ 100 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed | Fast Recovery =< 500ns, > 200mA (Io) | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Fast Recovery =< 500ns, > 200mA (Io) | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | - | - | - | - | - | - | - | - |
| Current - Reverse Leakage @ Vr | 3 µA @ 30 V | 200 µA @ 30 V | - | 10 µA @ 10 V | 3 µA @ 30 V | 500 nA @ 30 V | 3 µA @ 70 V | 3 µA @ 30 V |
| Capacitance @ Vr, F | - | 10pF @ 1V, 1MHz | - | - | - | 2.5pF @ 1V, 1MHz | 2pF @ 0V, 1MHz | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOD-923 | SOD-923 | SOD-923 | SOD-923 | SOD-923 | SOD-923 | SOD-923 | SOD-723 |
| Supplier Device Package | SOD-923 | SOD-923 | SOD-923 | SOD-923 | SOD-923 | SOD-923 | SOD-923 | SOD-723 |
| Operating Temperature - Junction | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | 150°C (Max) | -55°C ~ 125°C | -55°C ~ 150°C | -55°C ~ 125°C |
