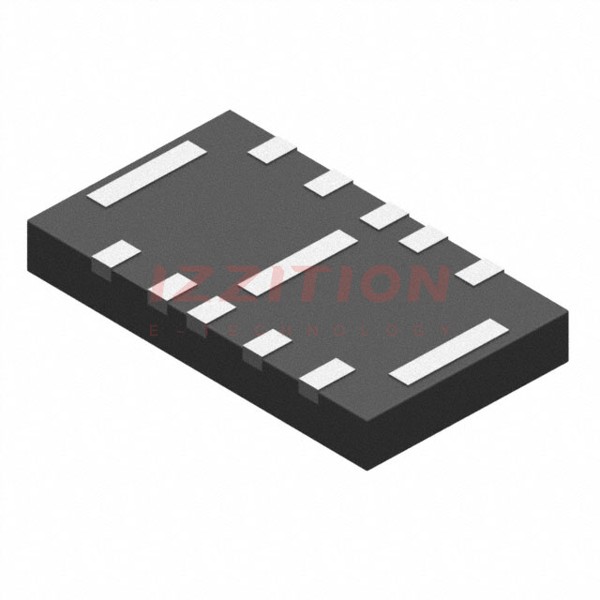

| Part Number | NSP8818MUTAG | NSP8814MUTAG |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Obsolete | Obsolete |
| Type | Steering (Rail to Rail) | Steering (Rail to Rail) |
| Unidirectional Channels | 8 | 4 |
| Bidirectional Channels | - | - |
| Voltage - Reverse Standoff (Typ) | 3V (Max) | 3V (Max) |
| Voltage - Breakdown (Min) | 3.2V | 3.2V |
| Voltage - Clamping (Max) @ Ipp | 15V | 15V |
| Current - Peak Pulse (10/1000µs) | 35A (8/20µs) | 35A (8/20µs) |
| Power - Peak Pulse | - | - |
| Power Line Protection | No | No |
| Applications | Ethernet | Ethernet |
| Capacitance @ Frequency | 5pF @ 1MHz (Max) | 5pF @ 1MHz (Max) |
| Operating Temperature | -55°C ~ 125°C (TJ) | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 10-UDFN Exposed Pad | 8-UDFN Exposed Pad |
| Supplier Device Package | 10-UDFN (3.5x2) | 8-UDFN (2.2x2) |
