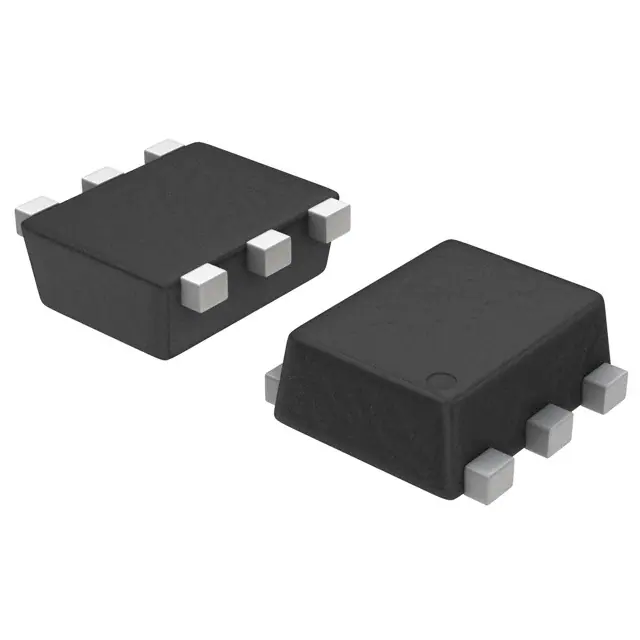

| Part Number | NSBC114YDP6T5G | NSBC114YPDP6T5G | NSBA114YDP6T5G | NSBC114EDP6T5G | NSBC114TDP6T5G |
|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active | Active | Active |
| Transistor Type | 2 NPN - Pre-Biased (Dual) | 1 NPN, 1 PNP - Pre-Biased (Dual) | 2 PNP - Pre-Biased (Dual) | 2 NPN - Pre-Biased (Dual) | 2 NPN - Pre-Biased (Dual) |
| Current - Collector (Ic) (Max) | 100mA | 100mA | 100mA | 100mA | 100mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V | 50V | 50V | 50V | 50V |
| Resistor - Base (R1) | 10kOhms | 10kOhms | 10kOhms | 10kOhms | 10kOhms |
| Resistor - Emitter Base (R2) | 47kOhms | 47kOhms | 47kOhms | 10kOhms | - |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 80 @ 5mA, 10V | 80 @ 5mA, 10V | 80 @ 5mA, 10V | 35 @ 5mA, 10V | 160 @ 5mA, 10V |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 300µA, 10mA | 250mV @ 300µA, 10mA | 250mV @ 300µA, 10mA | 250mV @ 300µA, 10mA | 250mV @ 1mA, 10mA |
| Current - Collector Cutoff (Max) | 500nA | 500nA | 500nA | 500nA | 500nA |
| Frequency - Transition | - | - | - | - | - |
| Power - Max | 339mW | 339mW | 408mW | 408mW | 339mW |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOT-963 | SOT-963 | SOT-963 | SOT-963 | SOT-963 |
| Supplier Device Package | SOT-963 | SOT-963 | SOT-963 | SOT-963 | SOT-963 |
