Please send RFQ , we will respond immediately.

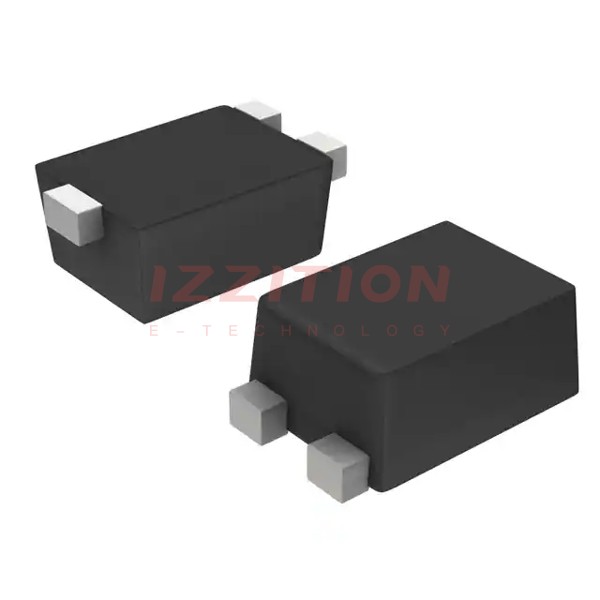

| Part Number | NSBA144TF3T5G | NSBA144WF3T5G | NSBC144TF3T5G | NSBA114TF3T5G | NSBA143TF3T5G | NSBA144EF3T5G |
|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active | Active | Active | Obsolete |
| Transistor Type | PNP - Pre-Biased | PNP - Pre-Biased | NPN - Pre-Biased | PNP - Pre-Biased | PNP - Pre-Biased | PNP - Pre-Biased |
| Current - Collector (Ic) (Max) | 100 mA | 100 mA | 100 mA | 100 mA | 100 mA | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | 50 V | 50 V | 50 V | 50 V | 50 V | 50 V |
| Resistor - Base (R1) | 47 kOhms | 47 kOhms | 47 kOhms | 10 kOhms | 4.7 kOhms | 47 kOhms |
| Resistor - Emitter Base (R2) | - | 22 kOhms | - | - | - | 47 kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 120 @ 5mA, 10V | 80 @ 5mA, 10V | 120 @ 5mA, 10V | 160 @ 5mA, 10V | 160 @ 5mA, 10V | 80 @ 5mA, 10V |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 1mA, 10mA | 250mV @ 300µA, 10mA | 250mV @ 1mA, 10mA | 250mV @ 300µA, 10mA | 250mV @ 1mA, 10mA | 250mV @ 300µA, 10mA |
| Current - Collector Cutoff (Max) | 500nA | 500nA | 500nA | 500nA | 500nA | 500nA |
| Frequency - Transition | - | - | - | - | - | - |
| Power - Max | 254 mW | 254 mW | 254 mW | 254 mW | 254 mW | 254 mW |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOT-1123 | SOT-1123 | SOT-1123 | SOT-1123 | SOT-1123 | SOT-1123 |
| Supplier Device Package | SOT-1123 | SOT-1123 | SOT-1123 | SOT-1123 | SOT-1123 | SOT-1123 |
