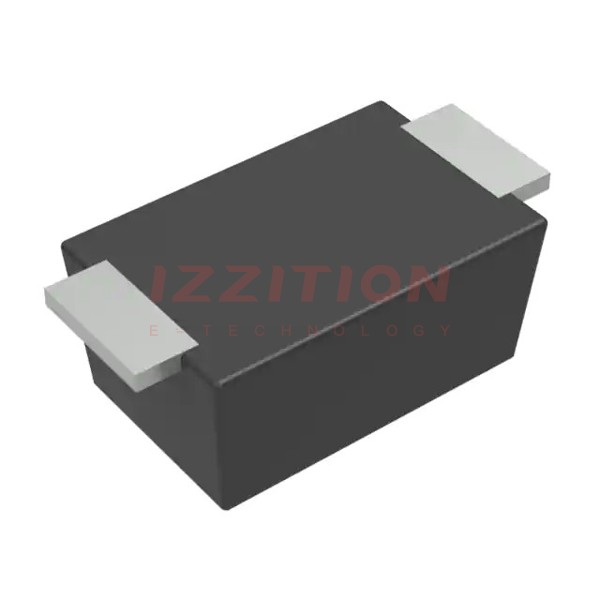

| Part Number | NRVUS1FFA | NRVUS1KFA | NRVUS1MFA | NRVUS1GFA | NRVUS1JFA | NRVUS1AFA | NRVUS1BFA | NRVUS1DFA |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Diode Type | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 300 V | 800 V | 1000 V | 400 V | 600 V | 50 V | 100 V | 200 V |
| Current - Average Rectified (Io) | 1A | 1A | 1A | 1A | 1A | 1A | 1A | 1A |
| Voltage - Forward (Vf) (Max) @ If | 950 mV @ 1 A | 1.7 V @ 1 A | 1.7 V @ 1 A | 1.3 V @ 1 A | 1.7 V @ 1 A | 950 mV @ 1 A | 950 mV @ 1 A | 950 mV @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 50 ns | 75 ns | 75 ns | 50 ns | 75 ns | 50 ns | 50 ns | 50 ns |
| Current - Reverse Leakage @ Vr | 5 µA @ 300 V | 5 µA @ 800 V | 5 µA @ 1000 V | 5 µA @ 400 V | 5 µA @ 600 V | 5 µA @ 50 V | 5 µA @ 100 V | 5 µA @ 200 V |
| Capacitance @ Vr, F | 20pF @ 4V, 1MHz | 15pF @ 4V, 1MHz | 15pF @ 4V, 1MHz | 20pF @ 4V, 1MHz | 15pF @ 4V, 1MHz | 20pF @ 4V, 1MHz | 20pF @ 4V, 1MHz | 20pF @ 4V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOD-123F | SOD-123F | SOD-123F | SOD-123F | SOD-123F | SOD-123F | SOD-123F | SOD-123F |
| Supplier Device Package | SOD-123FL | SOD-123FL | SOD-123FL | SOD-123FL | SOD-123FL | SOD-123FL | SOD-123FL | SOD-123FL |
| Operating Temperature - Junction | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C |
