onsemi-NRVUD340T4G - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	400 V
Current - Average Rectified (Io):	3A
Voltage - Forward (Vf) (Max) @ If:	1.15 V @ 3 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	50 ns
Current - Reverse Leakage @ Vr:	5 µA @ 400 V
Capacitance @ Vr, F:	-
Mounting Type:	Surface Mount
Package / Case:	TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package:	DPAK
Operating Temperature - Junction:	-65°C ~ 175°C

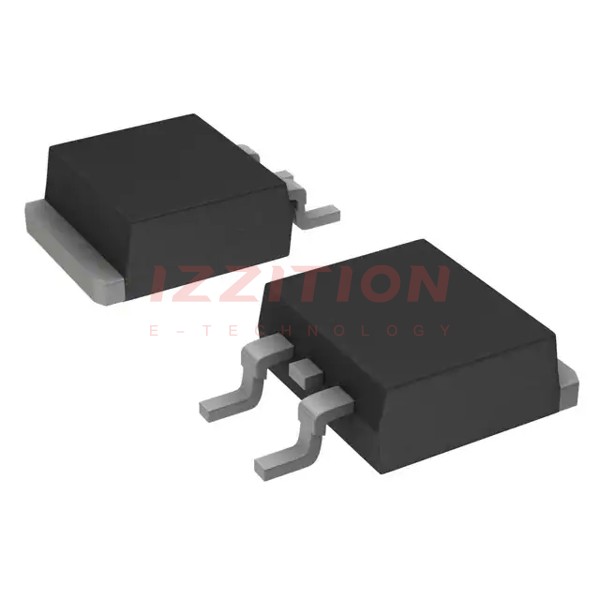

onsemi NRVUD340T4G
