onsemi-NRVTSAF260ET3G - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	60 V
Current - Average Rectified (Io):	2A
Voltage - Forward (Vf) (Max) @ If:	650 mV @ 2 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	12 µA @ 60 V
Capacitance @ Vr, F:	-
Mounting Type:	Surface Mount
Package / Case:	DO-221AC, SMA Flat Leads
Supplier Device Package:	SMA-FL
Operating Temperature - Junction:	-65°C ~ 175°C

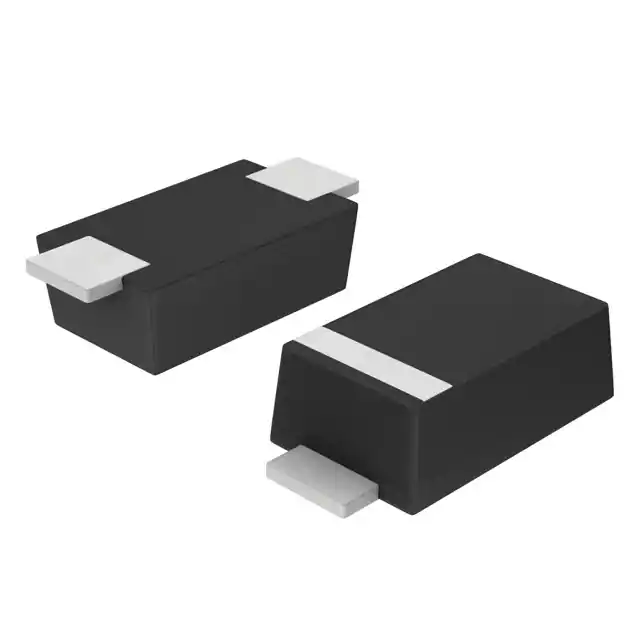

onsemi NRVTSAF260ET3G
