| Part Number | NRVTS6100PFST3G | NRVTS8100PFST3G |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Active | Active |
| Diode Type | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 100 V | 100 V |
| Current - Average Rectified (Io) | 6A (DC) | 8A |
| Voltage - Forward (Vf) (Max) @ If | 680 mV @ 6 A | 820 mV @ 8 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - |
| Current - Reverse Leakage @ Vr | 50 µA @ 100 V | 100 µA @ 100 V |
| Capacitance @ Vr, F | 827pF @ 1V, 1MHz | 660pF @ 1V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount |

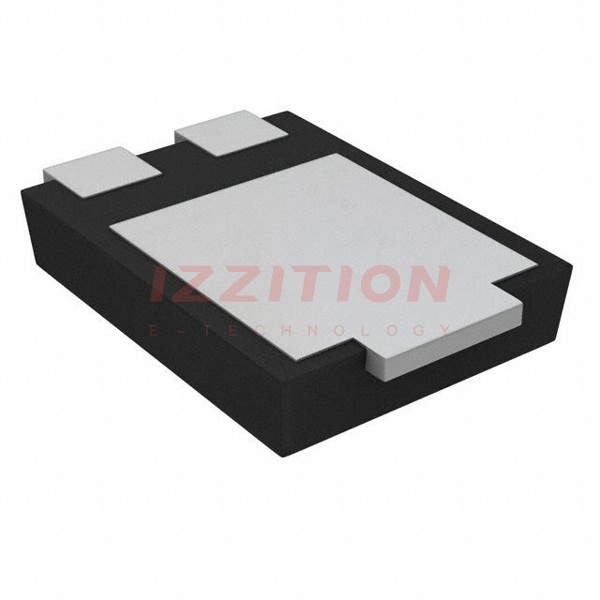

| Package / Case | TO-277, 3-PowerDFN | TO-277, 3-PowerDFN |
| Supplier Device Package | TO-277-3 | TO-277-3 |
| Operating Temperature - Junction | -55°C ~ 175°C | -55°C ~ 175°C |
