onsemi-NRVTS360ETFSTAG - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	60 V
Current - Average Rectified (Io):	3A
Voltage - Forward (Vf) (Max) @ If:	900 mV @ 6 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	12 µA @ 60 V
Capacitance @ Vr, F:	-
Mounting Type:	Surface Mount

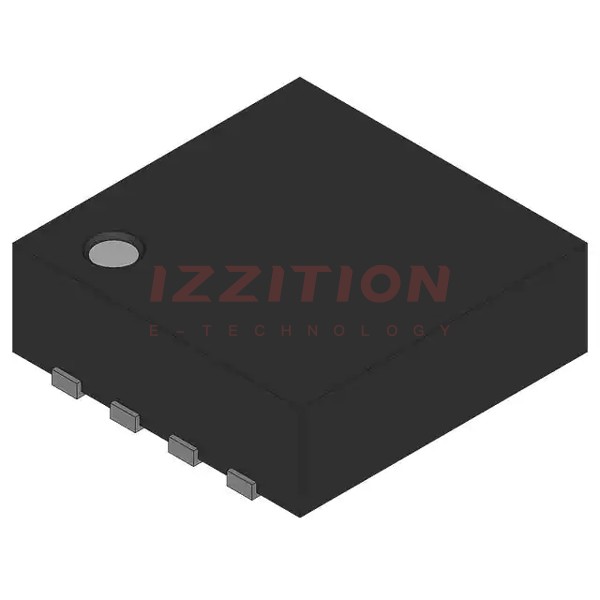

Package / Case:	8-PowerWDFN
Supplier Device Package:	8-WDFN (3.3x3.3)
Operating Temperature - Junction:	-65°C ~ 175°C

onsemi NRVTS360ETFSTAG
