| Part Number | NRVS3KB | NRVS3MB | NRVS3AB | NRVS3BB | NRVS3DB | NRVS3GB | NRVS3JB |
|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Diode Type | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 800 V | 1000 V | 50 V | 100 V | 200 V | 400 V | 600 V |
| Current - Average Rectified (Io) | 3A | 3A | 3A | 3A | 3A | 3A | 3A |
| Voltage - Forward (Vf) (Max) @ If | 1.15 V @ 3 A | 1.15 V @ 3 A | 1.15 V @ 3 A | 1.15 V @ 3 A | 1.15 V @ 3 A | 1.15 V @ 3 A | 1.15 V @ 3 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 1.5 µs | 1.5 µs | 1.5 µs | 1.5 µs | 1.5 µs | 1.5 µs | 1.5 µs |
| Current - Reverse Leakage @ Vr | 10 µA @ 800 V | 10 µA @ 1000 V | 10 µA @ 50 V | 10 µA @ 100 V | 10 µA @ 200 V | 10 µA @ 400 V | 10 µA @ 600 V |
| Capacitance @ Vr, F | 40pF @ 4V, 1MHz | 40pF @ 4V, 1MHz | 40pF @ 4V, 1MHz | 40pF @ 4V, 1MHz | 40pF @ 4V, 1MHz | 40pF @ 4V, 1MHz | 40pF @ 4V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

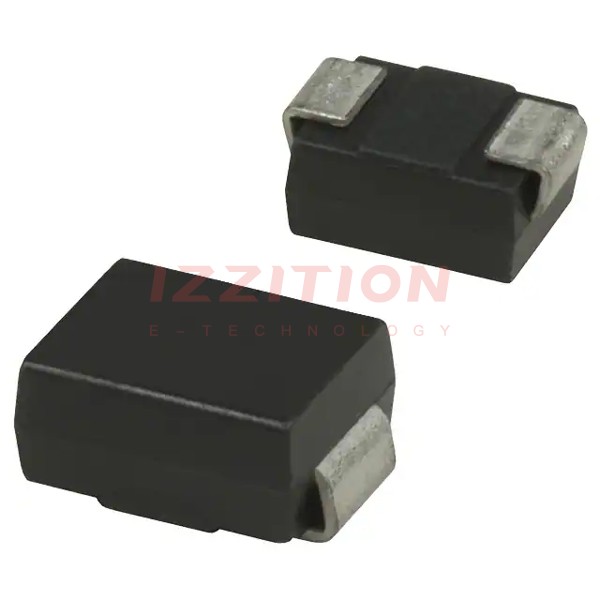

| Package / Case | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB |
| Supplier Device Package | DO-214AA (SMB) | DO-214AA (SMB) | DO-214AA (SMB) | DO-214AA (SMB) | DO-214AA (SMB) | DO-214AA (SMB) | DO-214AA (SMB) |
| Operating Temperature - Junction | -55°C ~ 150°C | -55°C ~ 150°C | -40°C ~ 175°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C |
