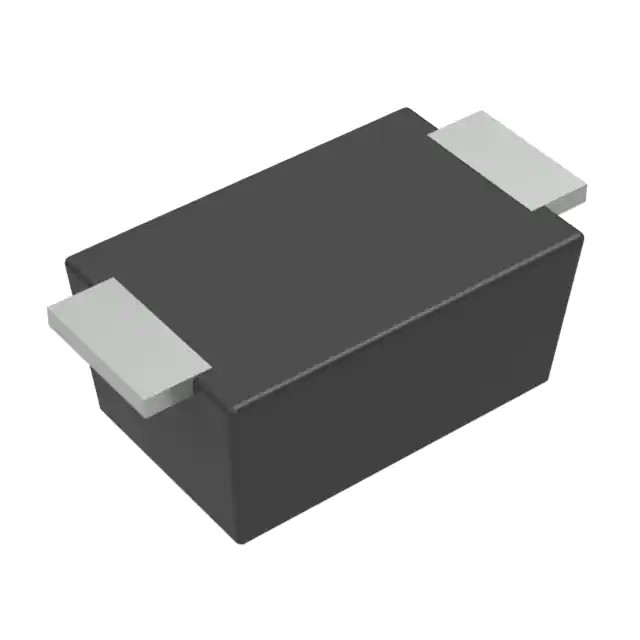

| Part Number | NRVHPRS1JFA | NRVHPRS1MFA | NRVHPRS1KFA | NRVHPRS1AFA | NRVHPRS1BFA | NRVHPRS1DFA | NRVHPRS1GFA |
|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Diode Type | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600 V | 1000 V | 800 V | 50 V | 100 V | 200 V | 400 V |
| Current - Average Rectified (Io) | 800mA | 800mA | 800mA | 800mA | 800mA | 800mA | 800mA |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 800 mA | 1.3 V @ 800 mA | 1.3 V @ 800 mA | 1.3 V @ 800 mA | 1.3 V @ 800 mA | 1.3 V @ 800 mA | 1.3 V @ 800 mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 250 ns | 500 ns | 500 ns | 150 ns | 150 ns | 150 ns | 250 ns |
| Current - Reverse Leakage @ Vr | 5 µA @ 600 V | 5 µA @ 1000 V | 5 µA @ 800 V | 5 µA @ 50 V | 5 µA @ 100 V | 5 µA @ 200 V | 5 µA @ 400 V |
| Capacitance @ Vr, F | 10pF @ 4V, 1MHz | 10pF @ 4V, 1MHz | 10pF @ 4V, 1MHz | 10pF @ 4V, 1MHz | 10pF @ 4V, 1MHz | 10pF @ 4V, 1MHz | 10pF @ 4V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOD-123F | SOD-123F | SOD-123F | SOD-123F | SOD-123F | SOD-123F | SOD-123F |
| Supplier Device Package | SOD-123FL | SOD-123FL | SOD-123FL | SOD-123FL | SOD-123FL | SOD-123FL | SOD-123FL |
| Operating Temperature - Junction | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C |
