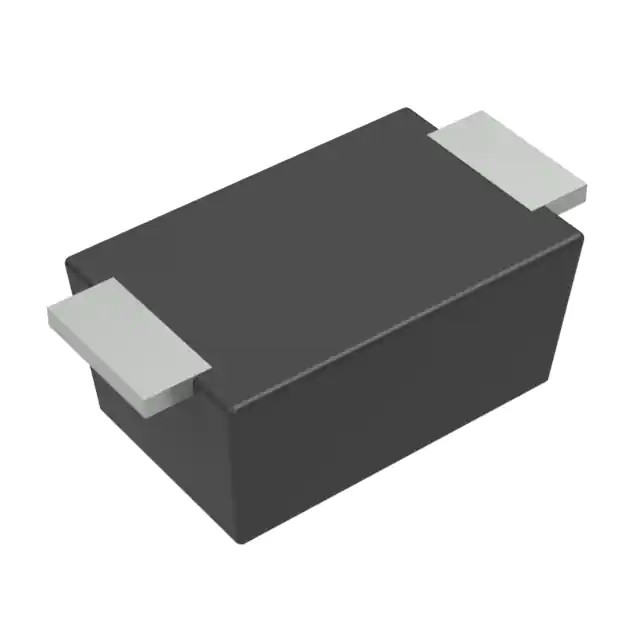

| Part Number | NRVBS210FA | NRVBS310FA | NRVBS215FA |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active |
| Diode Type | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 100 V | 100 V | 150 V |
| Current - Average Rectified (Io) | 2A | 3A | 2A |
| Voltage - Forward (Vf) (Max) @ If | 850 mV @ 2 A | 850 mV @ 3 A | 950 mV @ 2 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 7 ns | 8 ns | 13 ns |
| Current - Reverse Leakage @ Vr | 100 µA @ 100 V | 100 µA @ 100 V | 100 µA @ 150 V |
| Capacitance @ Vr, F | 62pF @ 4V, 1MHz | 78pF @ 4V, 1MHz | 48pF @ 4V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOD-123F | SOD-123F | SOD-123W |
| Supplier Device Package | SOD-123FL | SOD-123FL | SOD-123FA |
| Operating Temperature - Junction | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C |
