onsemi-NRTS860PFST3G - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	60 V
Current - Average Rectified (Io):	8A
Voltage - Forward (Vf) (Max) @ If:	640 mV @ 8 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	70 µA @ 60 V
Capacitance @ Vr, F:	870pF @ 1V, 1MHz
Mounting Type:	Surface Mount

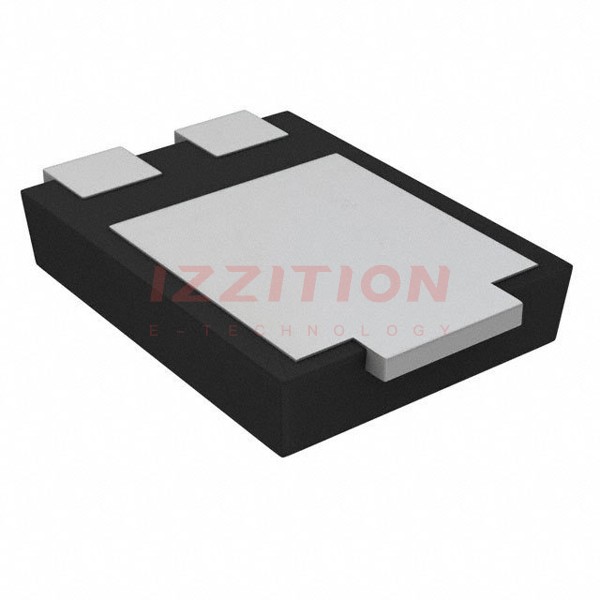

Package / Case:	TO-277, 3-PowerDFN
Supplier Device Package:	TO-277-3
Operating Temperature - Junction:	-55°C ~ 175°C

onsemi NRTS860PFST3G
