| Part Number | NLX2G00CMX1TCG | NLX2G04CMX1TCG | NLX2G06CMX1TCG | NLX2G02CMX1TCG | NLX2G08CMX1TCG | NLX2G00AMX1TCG | NLX2G00BMX1TCG |
|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Logic Type | NAND Gate | Inverter | Inverter | NOR Gate | AND Gate | NAND Gate | NAND Gate |
| Number of Circuits | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of Inputs | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Features | - | - | Open Drain | - | - | - | - |
| Voltage - Supply | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 1 µA | 1 µA | 1 µA | 1 µA | 1 µA | 1 µA | 1 µA |
| Current - Output High, Low | 32mA, 32mA | 32mA, 32mA | -, 32mA | 32mA, 32mA | 32mA, 32mA | 32mA, 32mA | 32mA, 32mA |
| Logic Level - Low | - | - | - | - | - | - | - |
| Logic Level - High | - | - | - | - | - | - | - |
| Max Propagation Delay @ V, Max CL | 3.6ns @ 5V, 50pF | 3.6ns @ 5V, 50pF | 3ns @ 5V, 50pF | 3.7ns @ 5V, 50pF | 3.7ns @ 5V, 50pF | 3.6ns @ 5V, 50pF | 3.6ns @ 5V, 50pF |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

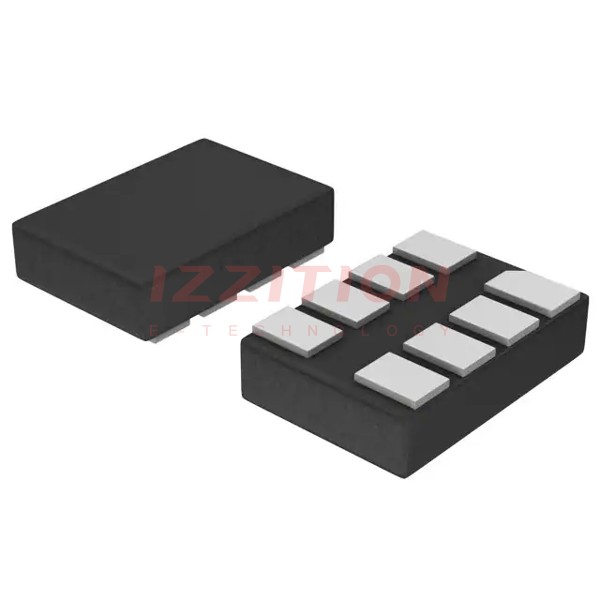

| Supplier Device Package | 8-ULLGA (1.45x1) | 6-ULLGA (1x1) | 6-ULLGA (1x1) | 8-ULLGA (1.45x1) | 8-UQFN (1.6x1.6) | 8-ULLGA (1.95x1) | 8-ULLGA (1.6x1) |
| Package / Case | 8-XFLGA | 6-XFLGA | 6-XFLGA | 8-XFLGA | 8-UFQFN | 8-XFLGA | 8-XFLGA |
