onsemi-NLVVHC4053DTR2G - Interface - Analog Switches, Multiplexers, Demultiplexers Product Specifications and Latest Quotes

Switch Circuit:	SPDT
Multiplexer/Demultiplexer Circuit:	2:1
Number of Circuits:	3
On-State Resistance (Max):	100Ohm
Channel-to-Channel Matching (ΔRon):	10Ohm
Voltage - Supply, Single (V+):	2V ~ 6V
Voltage - Supply, Dual (V±):	±2V ~ 6V
Switch Time (Ton, Toff) (Max):	-
-3db Bandwidth:	120MHz
Charge Injection:	-
Channel Capacitance (CS(off), CD(off)):	50pF
Current - Leakage (IS(off)) (Max):	100nA
Crosstalk:	-60dB @ 1MHz
Operating Temperature:	-55°C ~ 125°C (TA)
Mounting Type:	Surface Mount
Package / Case:	16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package:	16-TSSOP

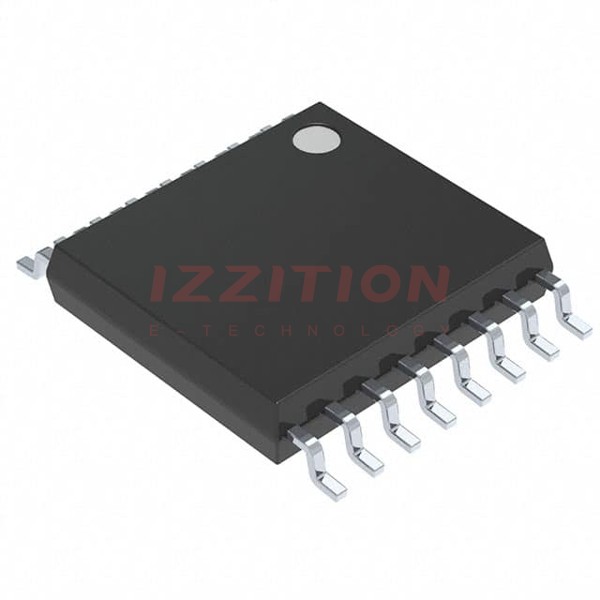

onsemi NLVVHC4053DTR2G
