| Part Number | NLVHCT4851ADTR2G | NLVHCT4852ADTR2G | NLVHC4851ADTR2G |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active |
| Switch Circuit | - | SP4T | - |
| Multiplexer/Demultiplexer Circuit | 8:1 | 4:1 | 8:1 |
| Number of Circuits | 1 | 2 | 1 |
| On-State Resistance (Max) | 400Ohm | 400Ohm | 400Ohm |
| Channel-to-Channel Matching (ΔRon) | - | - | - |
| Voltage - Supply, Single (V+) | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 2V ~ 6V |
| Voltage - Supply, Dual (V±) | - | - | - |
| Switch Time (Ton, Toff) (Max) | - | - | - |
| -3db Bandwidth | - | - | - |
| Charge Injection | - | - | - |
| Channel Capacitance (CS(off), CD(off)) | 40pF | 40pF | 40pF |
| Current - Leakage (IS(off)) (Max) | 100nA | 100nA | 100nA |
| Crosstalk | - | - | - |
| Operating Temperature | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

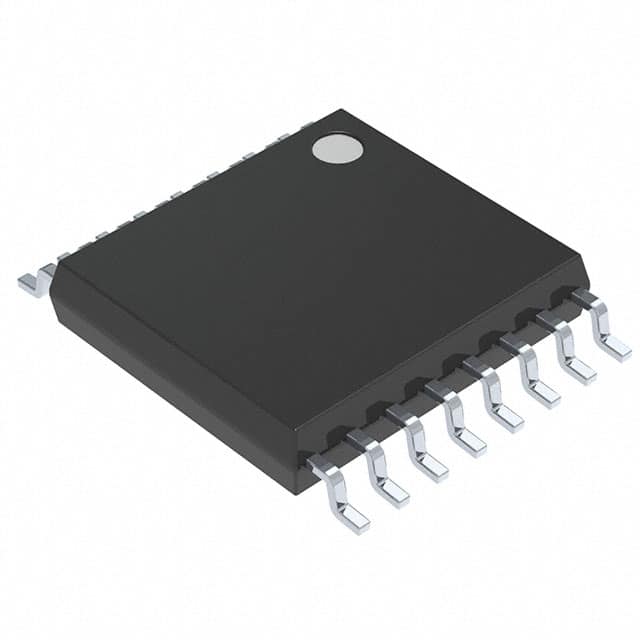

| Package / Case | 16-TSSOP (0.173", 4.40mm Width) | 16-TSSOP (0.173", 4.40mm Width) | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP | 16-TSSOP | 16-TSSOP |
