onsemi-NLV74HC4851AMNTWG - Interface - Analog Switches, Multiplexers, Demultiplexers Product Specifications and Latest Quotes

Switch Circuit:	-
Multiplexer/Demultiplexer Circuit:	8:1
Number of Circuits:	1
On-State Resistance (Max):	400Ohm
Channel-to-Channel Matching (ΔRon):	-
Voltage - Supply, Single (V+):	2V ~ 6V
Voltage - Supply, Dual (V±):	-
Switch Time (Ton, Toff) (Max):	-
-3db Bandwidth:	-
Charge Injection:	-
Channel Capacitance (CS(off), CD(off)):	40pF
Current - Leakage (IS(off)) (Max):	100nA
Crosstalk:	-
Operating Temperature:	-55°C ~ 125°C (TA)
Mounting Type:	Surface Mount

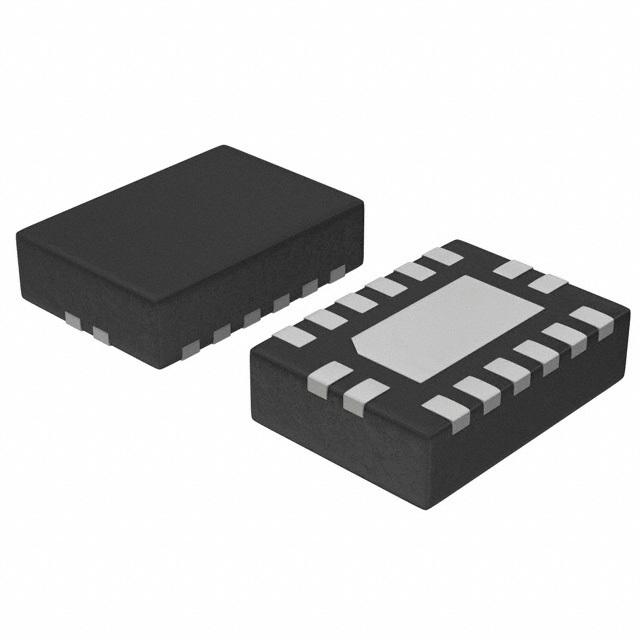

Package / Case:	16-VFQFN Exposed Pad
Supplier Device Package:	16-QFN (2.5x3.5)

onsemi NLV74HC4851AMNTWG
