onsemi-NLV37WZ14USG - Logic - Gates and Inverters Product Specifications and Latest Quotes

Logic Type:	Inverter
Number of Circuits:	3
Number of Inputs:	3
Features:	Schmitt Trigger
Voltage - Supply:	1.65V ~ 5.5V
Current - Quiescent (Max):	1 µA
Current - Output High, Low:	32mA, 32mA
Logic Level - Low:	0.4V ~ 1.2V
Logic Level - High:	1.8V ~ 3.6V
Max Propagation Delay @ V, Max CL:	4.9ns @ 5V, 50pF
Operating Temperature:	-55°C ~ 125°C
Mounting Type:	Surface Mount
Supplier Device Package:	US8
Package / Case:	8-VFSOP (0.091", 2.30mm Width)

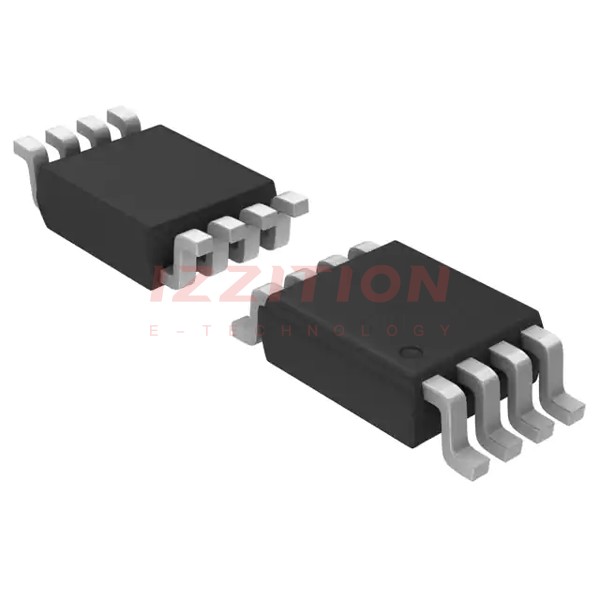

onsemi NLV37WZ14USG
