onsemi-NLV27WZ86USG - Logic - Gates and Inverters Product Specifications and Latest Quotes

Logic Type:	XOR (Exclusive OR)
Number of Circuits:	2
Number of Inputs:	2
Features:	-
Voltage - Supply:	1.65V ~ 5.5V
Current - Quiescent (Max):	1 µA
Current - Output High, Low:	32mA, 32mA
Logic Level - Low:	-
Logic Level - High:	-
Max Propagation Delay @ V, Max CL:	4.2ns @ 5V, 50pF
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Supplier Device Package:	US8
Package / Case:	8-VFSOP (0.091", 2.30mm Width)

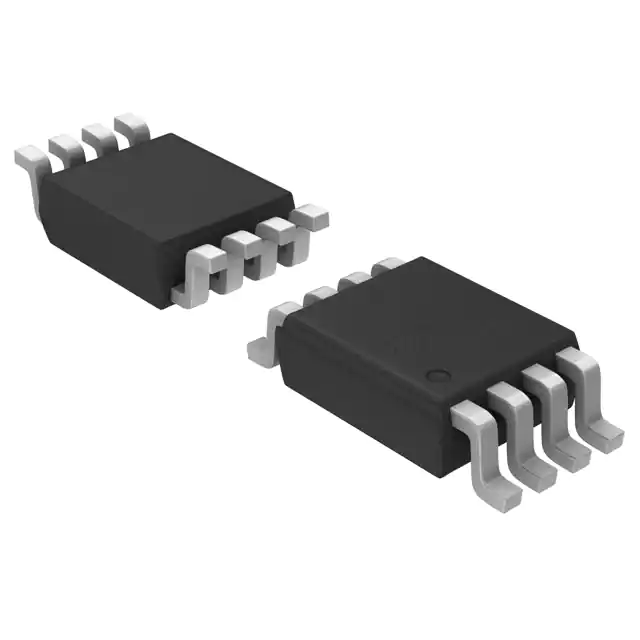

onsemi NLV27WZ86USG
