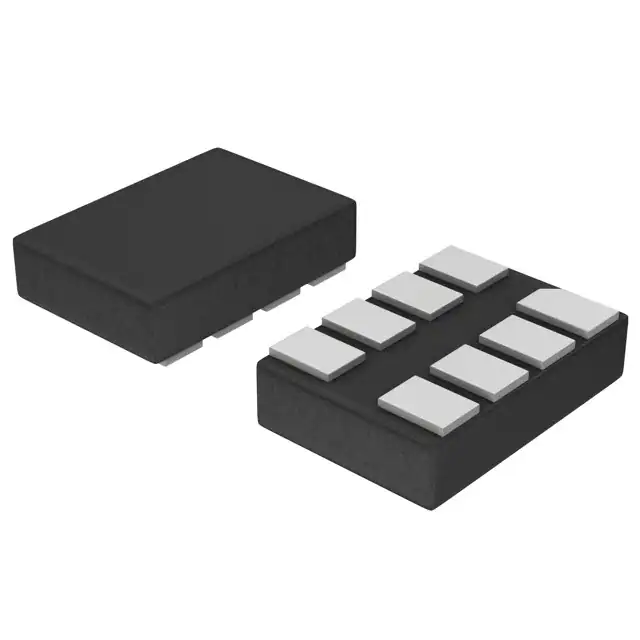

| Part Number | NLU3G14BMX1TCG | NLU3G14CMX1TCG | NLU1G14BMX1TCG | NLU2G14BMX1TCG | NLU3G14AMX1TCG |
|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Logic Type | Inverter | Inverter | Inverter | Inverter | Inverter |
| Number of Circuits | 3 | 3 | 1 | 2 | 3 |
| Number of Inputs | 3 | 3 | 1 | 2 | 3 |
| Features | Schmitt Trigger | Schmitt Trigger | Schmitt Trigger | Schmitt Trigger | Schmitt Trigger |
| Voltage - Supply | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 1 µA | 1 µA | 1 µA | 1 µA | 1 µA |
| Current - Output High, Low | 8mA, 8mA | 8mA, 8mA | 8mA, 8mA | 8mA, 8mA | 8mA, 8mA |
| Logic Level - Low | 0.9V ~ 1.65V | 0.9V ~ 1.65V | 0.9V ~ 1.65V | 0.9V ~ 1.65V | 0.9V ~ 1.65V |
| Logic Level - High | 2.2V ~ 3.85V | 2.2V ~ 3.85V | 2.2V ~ 3.85V | 2.2V ~ 3.85V | 2.2V ~ 3.85V |
| Max Propagation Delay @ V, Max CL | 10.6ns @ 5V, 50pF | 10.6ns @ 5V, 50pF | 10.6ns @ 5V, 50pF | 10.6ns @ 5V, 50pF | 10.6ns @ 5V, 50pF |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 8-ULLGA (1.6x1) | 8-ULLGA (1.45x1) | 6-ULLGA (1.2x1) | 6-ULLGA (1.2x1) | 8-ULLGA (1.95x1) |
| Package / Case | 8-XFLGA | 8-XFLGA | 6-XFLGA | 6-XFLGA | 8-XFLGA |
