| Part Number | NLU1GT04AMUTCG | NLU1GT04MUTCG | NLU1GU04AMUTCG | NLU1GT14AMUTCG | NLU1G04AMUTCG |
|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Active |
| Logic Type | Inverter | Inverter | Inverter | Inverter | Inverter |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 |
| Number of Inputs | 1 | 1 | 1 | 1 | 1 |
| Features | - | - | - | Schmitt Trigger | - |
| Voltage - Supply | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 1 µA | 1 µA | 1 µA | 1 µA | 1 µA |
| Current - Output High, Low | 8mA, 8mA | 8mA, 8mA | 8mA, 8mA | 8mA, 8mA | 8mA, 8mA |
| Logic Level - Low | 0.3V ~ 0.8V | 0.3V ~ 0.8V | - | 0.35V ~ 0.6V | - |
| Logic Level - High | 1.2V ~ 2V | 1.2V ~ 2V | - | 1.6V ~ 2.1V | - |
| Max Propagation Delay @ V, Max CL | 7.7ns @ 5V, 50pF | 7.7ns @ 5V, 50pF | 7ns @ 5V, 50pF | 10.6ns @ 5V, 50pF | 7.5ns @ 5V, 50pF |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

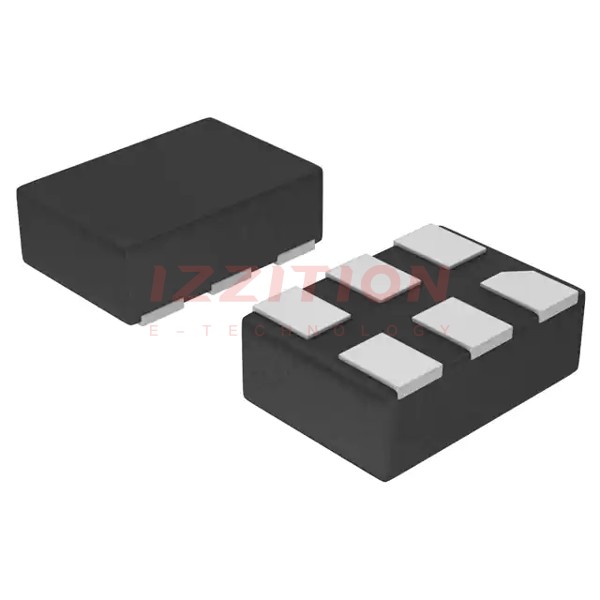

| Supplier Device Package | 6-UDFN (1.45x1) | 6-UDFN (1.2x1) | 6-UDFN (1.45x1) | 6-UDFN (1.45x1) | 6-UDFN (1.45x1) |
| Package / Case | 6-UFDFN | 6-UFDFN | 6-UFDFN | 6-UFDFN | 6-UFDFN |
