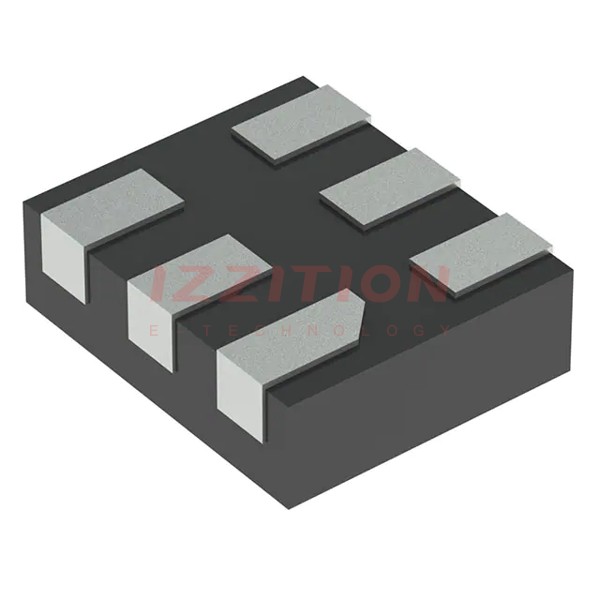

| Part Number | NLU1G86MUTCG | NLU1GT86MUTCG | NLU1G86AMUTCG | NLU1G86CMUTCG |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Active |
| Logic Type | XOR (Exclusive OR) | XOR (Exclusive OR) | XOR (Exclusive OR) | XOR (Exclusive OR) |
| Number of Circuits | 1 | 1 | 1 | 1 |
| Number of Inputs | 2 | 2 | 2 | 2 |
| Features | - | - | - | - |
| Voltage - Supply | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 1 µA | 1 µA | 1 µA | 1 µA |
| Current - Output High, Low | 8mA, 8mA | 8mA, 8mA | 8mA, 8mA | 8mA, 8mA |
| Logic Level - Low | - | 0.53V ~ 0.8V | - | - |
| Logic Level - High | - | 1.4V ~ 2V | - | - |
| Max Propagation Delay @ V, Max CL | 8.8ns @ 5V, 50pF | 8.8ns @ 5V, 50pF | 8.8ns @ 5V, 50pF | 8.8ns @ 5V, 50pF |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 6-UDFN (1.2x1) | 6-UDFN (1.2x1) | 6-UDFN (1.45x1) | 6-UDFN (1x1) |
| Package / Case | 6-UFDFN | 6-UFDFN | 6-UFDFN | 6-UFDFN |
