Please send RFQ , we will respond immediately.

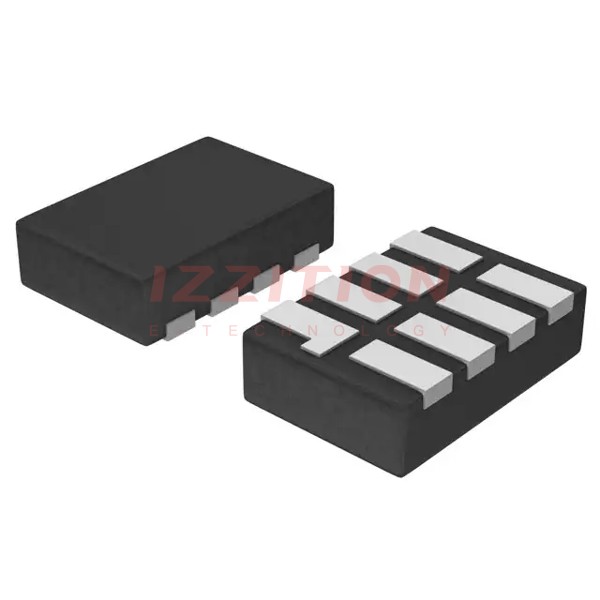

| Part Number | NLSX5012MUTAG | NLSX5014MUTAG | NLSX3012MUTAG |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active |
| Translator Type | Voltage Level | Voltage Level | Voltage Level |
| Channel Type | Bidirectional | Bidirectional | Bidirectional |
| Number of Circuits | 1 | 1 | 1 |
| Channels per Circuit | 2 | 4 | 2 |
| Voltage - VCCA | 0.9 V ~ 4.5 V | 0.9 V ~ 4.5 V | 0.9 V ~ 4.5 V |
| Voltage - VCCB | 0.9 V ~ 4.5 V | 0.9 V ~ 4.5 V | 1.3 V ~ 4.5 V |
| Input Signal | - | - | - |
| Output Signal | - | - | - |
| Output Type | Tri-State, Non-Inverted | Tri-State, Non-Inverted | Tri-State, Non-Inverted |
| Data Rate | 100Mbps | 100Mbps | 100Mbps |
| Operating Temperature | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) | -40°C ~ 85°C (TA) |
| Features | Auto-Direction Sensing, Power-Off Protection | Auto-Direction Sensing, Power-Off Protection | Auto-Direction Sensing |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-UFDFN | 12-UFQFN | 8-UFDFN |
| Supplier Device Package | 8-UDFN (1.8x1.2) | 12-UQFN (1.7x2) | 8-UDFN (1.8x1.2) |
