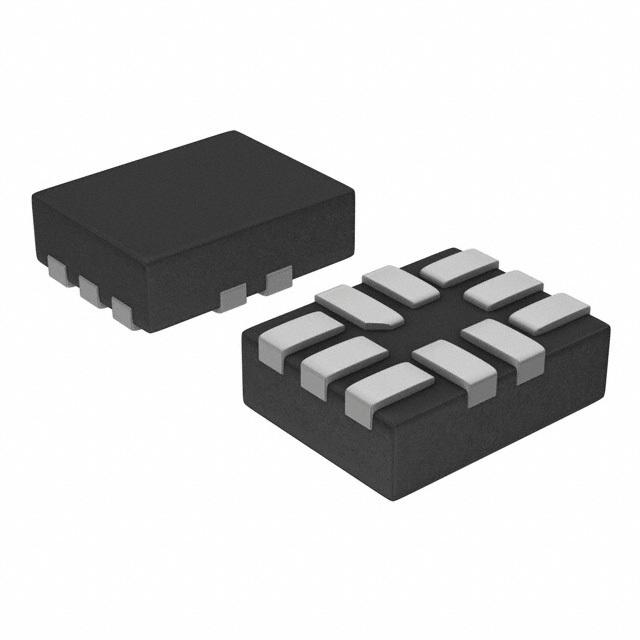

| Part Number | NLAS6234MUTBG | NLAS6233MUTBG |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Obsolete | Obsolete |
| Switch Circuit | DPDT | DPDT |
| Multiplexer/Demultiplexer Circuit | 2:2 | 2:2 |
| Number of Circuits | 2 | 2 |
| On-State Resistance (Max) | 550mOhm | 550mOhm |
| Channel-to-Channel Matching (ΔRon) | 190mOhm | 190mOhm |
| Voltage - Supply, Single (V+) | 2.7V ~ 4.5V | 2.7V ~ 4.5V |
| Voltage - Supply, Dual (V±) | - | - |
| Switch Time (Ton, Toff) (Max) | 17ns, 9ns | 17ns, 9ns |
| -3db Bandwidth | 36MHz | 36MHz |
| Charge Injection | - | - |
| Channel Capacitance (CS(off), CD(off)) | 45pF | 45pF |
| Current - Leakage (IS(off)) (Max) | 1µA | 1µA |
| Crosstalk | -98dB @ 100kHz | -98dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 10-UFQFN | 10-UFQFN |
| Supplier Device Package | 10-UQFN (1.4x1.8) | 10-UQFN (1.4x1.8) |
