onsemi-NLAS54404FCTAG - Interface - Analog Switches, Multiplexers, Demultiplexers Product Specifications and Latest Quotes

Switch Circuit:	SPDT
Multiplexer/Demultiplexer Circuit:	2:1
Number of Circuits:	2
On-State Resistance (Max):	2.1Ohm (Typ)
Channel-to-Channel Matching (ΔRon):	4.2mOhm
Voltage - Supply, Single (V+):	3V ~ 3.6V
Voltage - Supply, Dual (V±):	-
Switch Time (Ton, Toff) (Max):	20.7µs, 100ns
-3db Bandwidth:	250MHz
Charge Injection:	-
Channel Capacitance (CS(off), CD(off)):	6.8pF
Current - Leakage (IS(off)) (Max):	-
Crosstalk:	-90dB @ 20kHz
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	12-UFBGA, WLCSP
Supplier Device Package:	12-WLCSP (1.6x1.2)

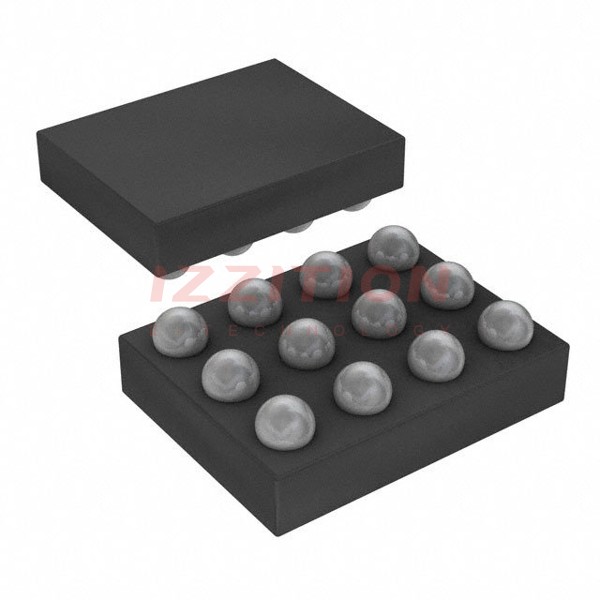

onsemi NLAS54404FCTAG
