| Part Number | NLAS5223CLMUTAG | NLAS5223CMUTAG |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Obsolete | Obsolete |
| Switch Circuit | SPDT | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 | 2:1 |
| Number of Circuits | 2 | 2 |
| On-State Resistance (Max) | 350mOhm | 350mOhm |
| Channel-to-Channel Matching (ΔRon) | 50mOhm (Max) | 50mOhm (Max) |
| Voltage - Supply, Single (V+) | 1.65V ~ 4.5V | 1.65V ~ 4.5V |
| Voltage - Supply, Dual (V±) | - | - |
| Switch Time (Ton, Toff) (Max) | 50ns, 30ns | 50ns, 30ns |
| -3db Bandwidth | 24MHz | 24MHz |
| Charge Injection | 38pC | 38pC |
| Channel Capacitance (CS(off), CD(off)) | 60pF | 60pF |
| Current - Leakage (IS(off)) (Max) | 5nA | 5nA |
| Crosstalk | -70dB @ 100kHz | -70dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |

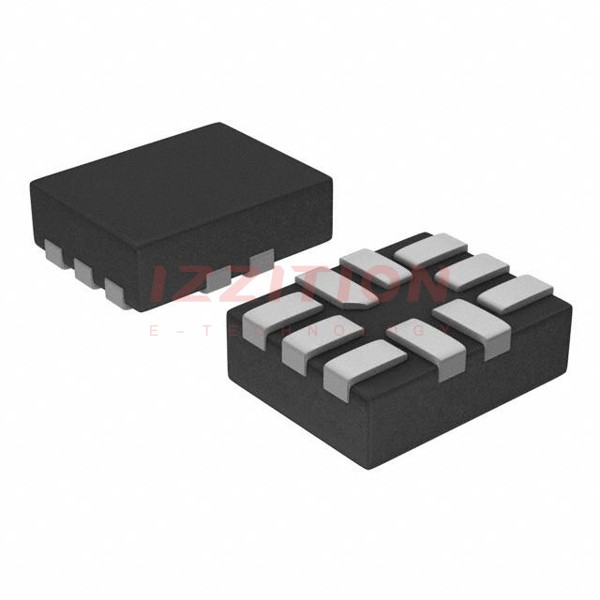

| Package / Case | 10-UFQFN | 10-UFQFN |
| Supplier Device Package | 10-UQFN (1.4x1.8) | 10-UQFN (1.4x1.8) |
