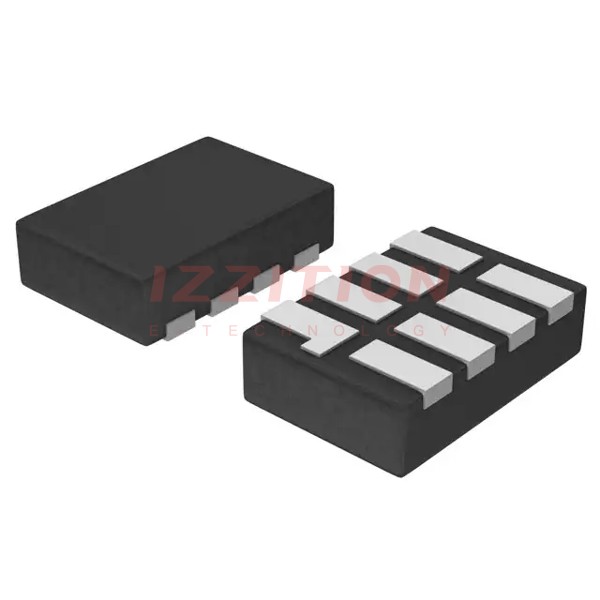

| Part Number | NLAS5213AMUTAG | NLAS5213BMUTAG |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Obsolete | Obsolete |
| Switch Circuit | DPST - NO | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 2:1 | 1:1 |
| Number of Circuits | 1 | 2 |
| On-State Resistance (Max) | 1.3Ohm | 1.3Ohm |
| Channel-to-Channel Matching (ΔRon) | 150mOhm | 150mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 4.5V | 1.65V ~ 4.5V |
| Voltage - Supply, Dual (V±) | - | - |
| Switch Time (Ton, Toff) (Max) | 20ns, 15ns | 20ns, 15ns |
| -3db Bandwidth | 496MHz | 496MHz |
| Charge Injection | - | - |
| Channel Capacitance (CS(off), CD(off)) | 19pF | 19pF |
| Current - Leakage (IS(off)) (Max) | 1µA | 1µA |
| Crosstalk | -97dB @ 1MHz | -97dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 8-UFDFN | 8-UFDFN |
| Supplier Device Package | 8-UDFN (1.8x1.2) | 8-UDFN (1.8x1.2) |
