onsemi-NLAS5113DFT2G - Interface - Analog Switches, Multiplexers, Demultiplexers Product Specifications and Latest Quotes

Switch Circuit:	SPST - NO
Multiplexer/Demultiplexer Circuit:	1:1
Number of Circuits:	1
On-State Resistance (Max):	1.3Ohm
Channel-to-Channel Matching (ΔRon):	-
Voltage - Supply, Single (V+):	1.65V ~ 4.5V
Voltage - Supply, Dual (V±):	-
Switch Time (Ton, Toff) (Max):	7ns, 4.5ns
-3db Bandwidth:	457MHz
Charge Injection:	-
Channel Capacitance (CS(off), CD(off)):	14pF
Current - Leakage (IS(off)) (Max):	100nA
Crosstalk:	-
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	6-TSSOP, SC-88, SOT-363
Supplier Device Package:	SC-88/SC70-6/SOT-363

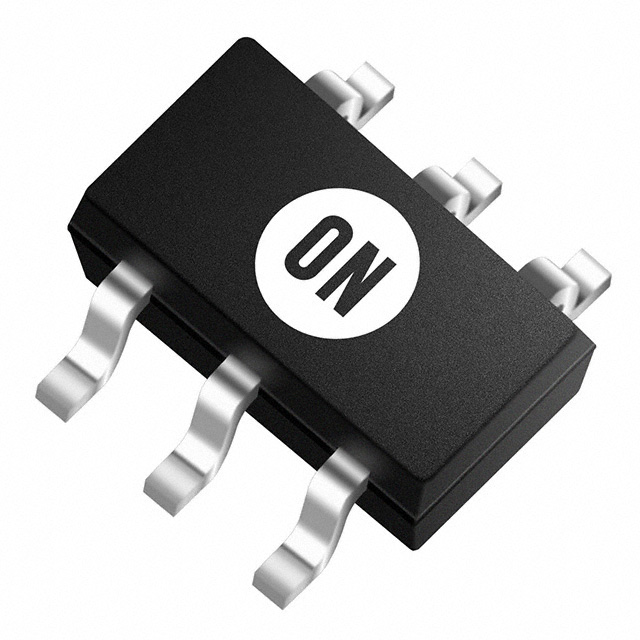

onsemi NLAS5113DFT2G
