onsemi-NLAS4717EPFCT1G - Interface - Analog Switches, Multiplexers, Demultiplexers Product Specifications and Latest Quotes

Switch Circuit:	SPDT
Multiplexer/Demultiplexer Circuit:	2:1
Number of Circuits:	2
On-State Resistance (Max):	3.5Ohm
Channel-to-Channel Matching (ΔRon):	100mOhm
Voltage - Supply, Single (V+):	1.8V ~ 5.5V
Voltage - Supply, Dual (V±):	-
Switch Time (Ton, Toff) (Max):	30ns, 40ns
-3db Bandwidth:	90MHz
Charge Injection:	9pC
Channel Capacitance (CS(off), CD(off)):	15pF
Current - Leakage (IS(off)) (Max):	1nA
Crosstalk:	-110dB @ 1MHz
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	10-UFBGA, FCBGA
Supplier Device Package:	10-Microbump

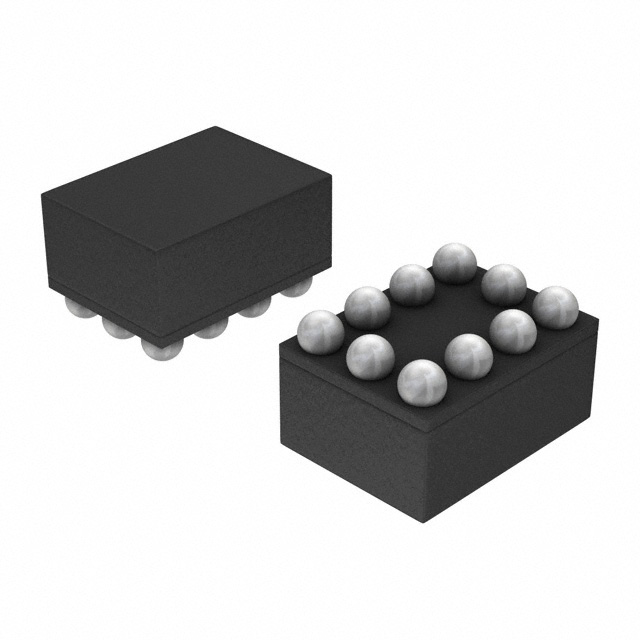

onsemi NLAS4717EPFCT1G
