| Part Number | NLAS4685FCT1G | NLAS4684FCT1G | NLAS4685FCT1 |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Active | Obsolete |
| Switch Circuit | SPDT | SPDT | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 | 2:1 | 2:1 |
| Number of Circuits | 2 | 2 | 2 |
| On-State Resistance (Max) | 800mOhm | 800mOhm | 800mOhm |
| Channel-to-Channel Matching (ΔRon) | 60mOhm | 60mOhm | 60mOhm |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - | - | - |
| Switch Time (Ton, Toff) (Max) | 30ns, 25ns | 30ns, 30ns | 30ns, 25ns |
| -3db Bandwidth | 11.5MHz | 9.5MHz | 11.5MHz |
| Charge Injection | 20pC | 15pC | 20pC |
| Channel Capacitance (CS(off), CD(off)) | 208pF, 102pF | 102pF, 104pF | 208pF, 102pF |
| Current - Leakage (IS(off)) (Max) | 1µA | 1µA | 1µA |
| Crosstalk | -81dB @ 100kHz | -83dB @ 100kHz | -81dB @ 100kHz |
| Operating Temperature | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

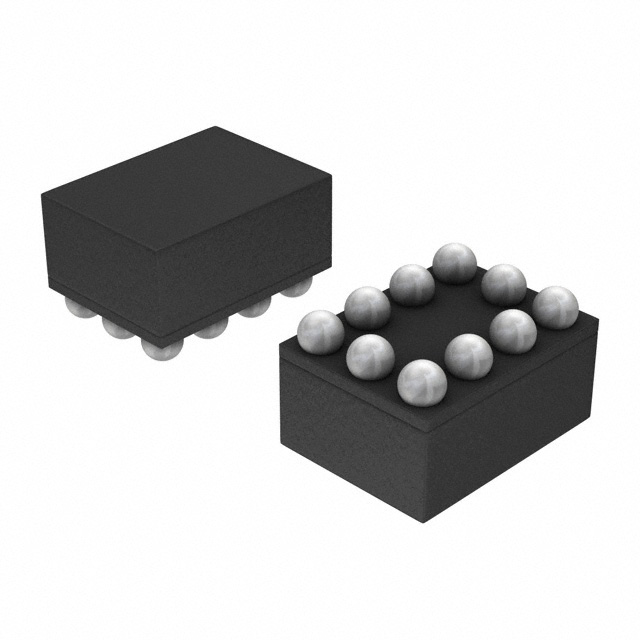

| Package / Case | 10-UFBGA, FCBGA | 10-UFBGA, FCBGA | 10-UFBGA, FCBGA |
| Supplier Device Package | 10-Microbump | 10-Microbump | 10-Microbump |
