| Part Number | NLAS3899BMNTWG | NLAS3899BMNTXG | NLAS3899BMNTBG |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Active | Active | Active |
| Switch Circuit | DPDT | DPDT | DPDT |
| Multiplexer/Demultiplexer Circuit | 2:2 | 2:2 | 2:2 |
| Number of Circuits | 2 | 2 | 2 |
| On-State Resistance (Max) | 2.5Ohm | 2.5Ohm | 2.5Ohm |
| Channel-to-Channel Matching (ΔRon) | 700mOhm | 700mOhm | 700mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 4.3V | 1.65V ~ 4.3V | 1.65V ~ 4.3V |
| Voltage - Supply, Dual (V±) | - | - | - |
| Switch Time (Ton, Toff) (Max) | 40ns, 30ns | 40ns, 30ns | 40ns, 30ns |
| -3db Bandwidth | 280MHz | 280MHz | 280MHz |
| Charge Injection | 111pC | 111pC | 111pC |
| Channel Capacitance (CS(off), CD(off)) | 10pF | 10pF | 10pF |
| Current - Leakage (IS(off)) (Max) | 300nA | 300nA | 300nA |
| Crosstalk | - | - | - |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

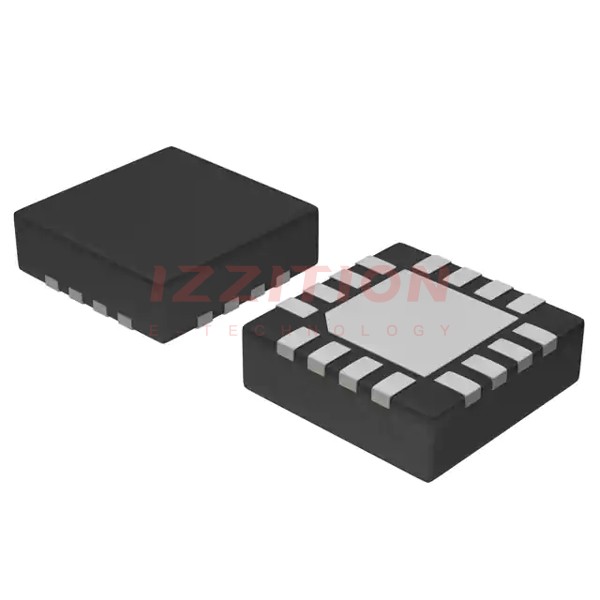

| Package / Case | 16-VFQFN Exposed Pad | 16-VFQFN Exposed Pad | 16-WFQFN |
| Supplier Device Package | 16-QFN (3x3) | 16-QFN (3x3) | 16-WQFN (1.8x2.6) |
