| Part Number | NLAS3699MN1R2G | NLAS3699BMN1R2G |
|---|---|---|
| Manufacturer | onsemi | onsemi |
| Product Status | Obsolete | Obsolete |
| Switch Circuit | DPDT | DPDT |
| Multiplexer/Demultiplexer Circuit | 2:2 | 2:2 |
| Number of Circuits | 2 | 2 |
| On-State Resistance (Max) | 550mOhm | 550mOhm |
| Channel-to-Channel Matching (ΔRon) | 50mOhm | 50mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 4.5V | 1.65V ~ 4.5V |
| Voltage - Supply, Dual (V±) | - | - |
| Switch Time (Ton, Toff) (Max) | 50ns, 50ns | 50ns, 50ns |
| -3db Bandwidth | 20MHz | 20MHz |
| Charge Injection | 50pC | 50pC |
| Channel Capacitance (CS(off), CD(off)) | 7pF | 7pF |
| Current - Leakage (IS(off)) (Max) | 500nA | 500nA |
| Crosstalk | -62dB @ 100kHz | -62dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |

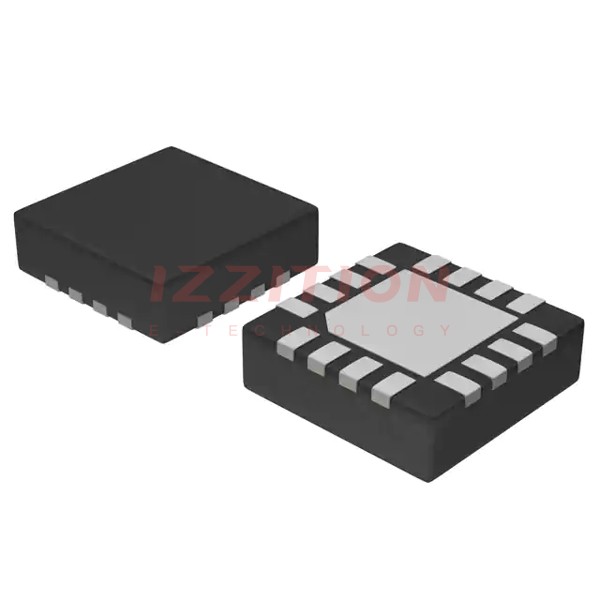

| Package / Case | 16-VFQFN Exposed Pad | 16-VFQFN Exposed Pad |
| Supplier Device Package | 16-QFN (3x3) | 16-QFN (3x3) |
