| Part Number | NLAS323US | NLAS323USG | NLAS324US | NLAS325US |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Active | Obsolete | Obsolete |
| Switch Circuit | SPST - NO | SPST - NO | SPST - NC | SPST - NO/NC |
| Multiplexer/Demultiplexer Circuit | 1:1 | 1:1 | 1:1 | 1:1 |
| Number of Circuits | 2 | 2 | 2 | 2 |
| On-State Resistance (Max) | 25Ohm | 25Ohm | 25Ohm | 25Ohm |
| Channel-to-Channel Matching (ΔRon) | - | - | - | - |
| Voltage - Supply, Single (V+) | 2V ~ 5.5V | 2V ~ 5.5V | 2V ~ 5.5V | 2V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - | - | - | - |
| Switch Time (Ton, Toff) (Max) | 9ns, 10ns | 9ns, 10ns | 9ns, 10ns | 14ns, 5ns |
| -3db Bandwidth | 220MHz | 220MHz | 220MHz | 175MHz |
| Charge Injection | 3pC | 3pC | 3pC | 3pC |
| Channel Capacitance (CS(off), CD(off)) | 10pF, 10pF | 10pF, 10pF | 10pF, 10pF | 10pF, 10pF |
| Current - Leakage (IS(off)) (Max) | 1nA | 1nA | 1nA | 200nA |
| Crosstalk | - | - | - | -90dB @ 100kHz |
| Operating Temperature | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

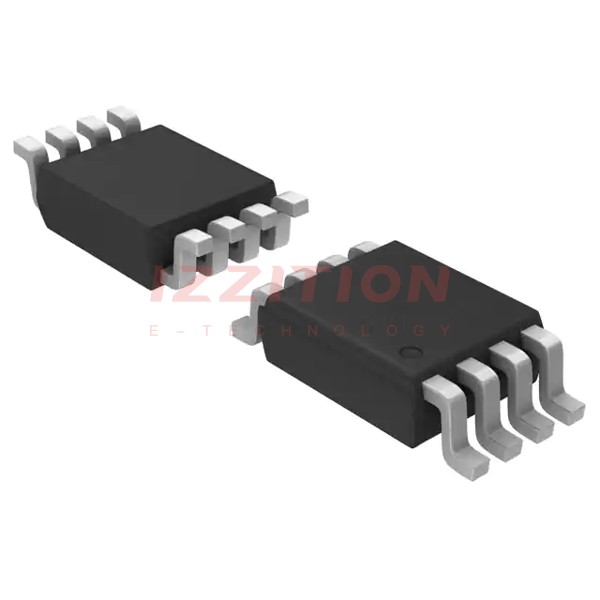

| Package / Case | 8-VFSOP (0.091", 2.30mm Width) | 8-VFSOP (0.091", 2.30mm Width) | 8-VFSOP (0.091", 2.30mm Width) | 8-VFSOP (0.091", 2.30mm Width) |
| Supplier Device Package | US8 | US8 | US8 | US8 |
