onsemi-NLAS2750MUTAG - Interface - Analog Switches, Multiplexers, Demultiplexers Product Specifications and Latest Quotes

Switch Circuit:	SPDT
Multiplexer/Demultiplexer Circuit:	2:1
Number of Circuits:	2
On-State Resistance (Max):	1.3Ohm
Channel-to-Channel Matching (ΔRon):	100mOhm
Voltage - Supply, Single (V+):	1.8V ~ 5V
Voltage - Supply, Dual (V±):	-
Switch Time (Ton, Toff) (Max):	150ns, 130ns
-3db Bandwidth:	44MHz
Charge Injection:	60pC
Channel Capacitance (CS(off), CD(off)):	5pF
Current - Leakage (IS(off)) (Max):	250nA
Crosstalk:	-60dB @ 300kHz
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount

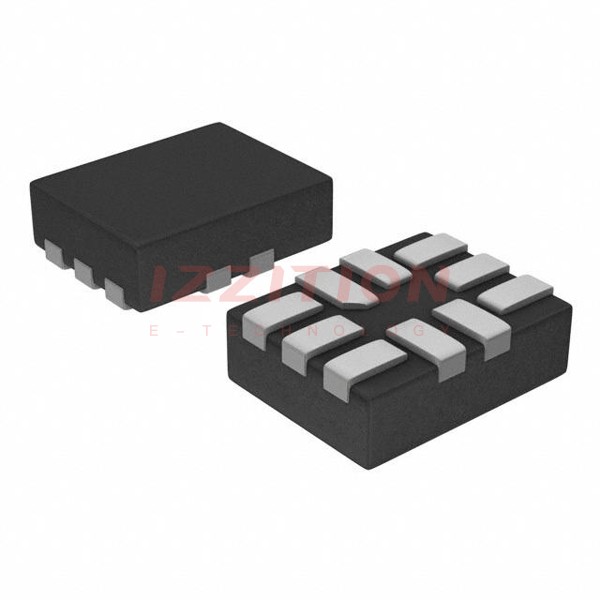

Package / Case:	10-UFQFN
Supplier Device Package:	10-UQFN (1.4x1.8)

onsemi NLAS2750MUTAG
