Please send RFQ , we will respond immediately.

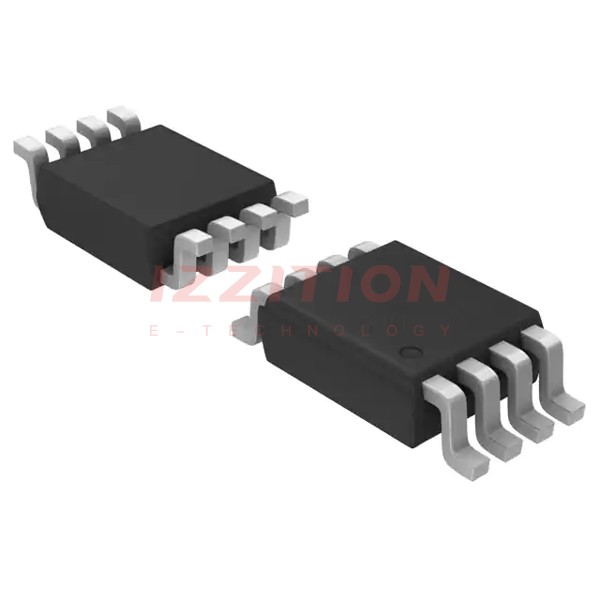

| Part Number | NL37WZ14US | NL37WZ14USG | NL37WZ04US |
|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Active |
| Logic Type | Inverter | Inverter | Inverter |
| Number of Circuits | 3 | 3 | 3 |
| Number of Inputs | 3 | 3 | 1 |
| Features | Schmitt Trigger | Schmitt Trigger | - |
| Voltage - Supply | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 1 µA | 1 µA | 1 µA |
| Current - Output High, Low | 32mA, 32mA | 32mA, 32mA | 32mA, 32mA |
| Logic Level - Low | 0.4V ~ 1.2V | 0.4V ~ 1.2V | - |
| Logic Level - High | 1.8V ~ 3.6V | 1.8V ~ 3.6V | - |
| Max Propagation Delay @ V, Max CL | 4.9ns @ 5V, 50pF | 4.9ns @ 5V, 50pF | 3.6ns @ 5V, 50pF |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | US8 | US8 | US8 |
| Package / Case | 8-VFSOP (0.091", 2.30mm Width) | 8-VFSOP (0.091", 2.30mm Width) | 8-VFSOP (0.091", 2.30mm Width) |
