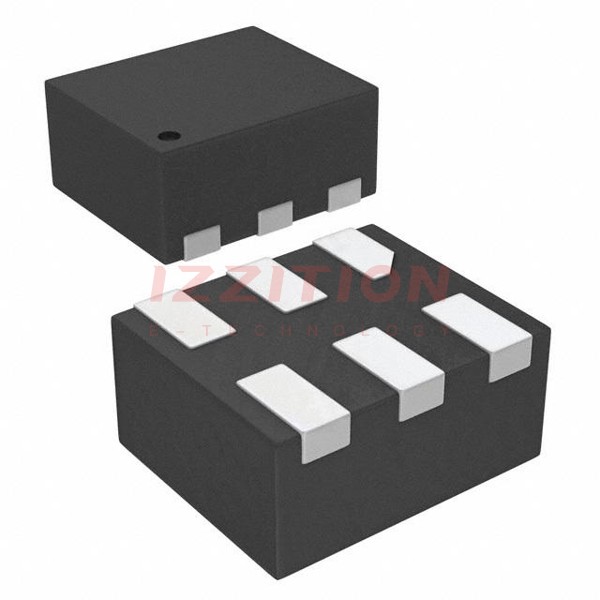

| Part Number | NL27WZ06MU3TCG | NL27WZ08MU3TCG | NL27WZ02MU3TCG | NL27WZ06MU1TCG |
|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Product Status | Active | Obsolete | Obsolete | Active |
| Logic Type | Inverter | AND Gate | NOR Gate | Inverter |
| Number of Circuits | 2 | 2 | 2 | 2 |
| Number of Inputs | 2 | 2 | 2 | 2 |
| Features | Open Drain | - | - | Open Drain |
| Voltage - Supply | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 1 µA | 1 µA | 1 µA | 1 µA |
| Current - Output High, Low | -, 32mA | 32mA, 32mA | 32mA, 32mA | -, 32mA |
| Logic Level - Low | - | - | - | - |
| Logic Level - High | - | - | - | - |
| Max Propagation Delay @ V, Max CL | - | 3.7ns @ 5V, 50pF | 3.7ns @ 5V, 50pF | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 6-UDFN (1x1) | 8-UDFN (1.45x1) | 8-UDFN (1.45x1) | 6-UDFN (1.45x1) |
| Package / Case | 6-UFDFN | 8-UFDFN | 8-UFDFN | 6-UFDFN |
