Please send RFQ , we will respond immediately.

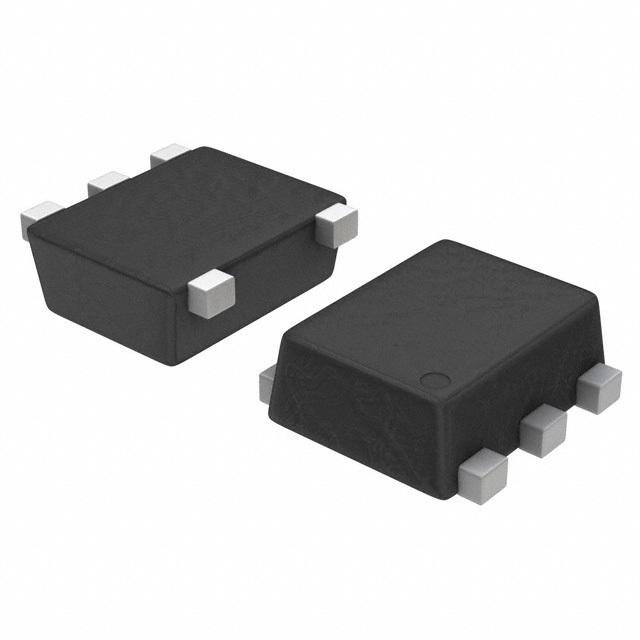

| Part Number | NL17SZ05P5T5G | NL17SZ08P5T5G | NL17SZ00P5T5G | NL17SZ02P5T5G | NL17SZ04P5T5G |
|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Logic Type | Inverter | AND Gate | NAND Gate | NOR Gate | Inverter |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 |
| Number of Inputs | 1 | 2 | 2 | 2 | 1 |
| Features | Open Drain | - | - | - | - |
| Voltage - Supply | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | - | 1 µA | 1 µA | 1 µA | 1 µA |
| Current - Output High, Low | 24mA, 24mA | 32mA, 32mA | 32mA, 32mA | 32mA, 32mA | 32mA, 32mA |
| Logic Level - Low | - | - | - | - | - |
| Logic Level - High | - | - | - | - | - |
| Max Propagation Delay @ V, Max CL | - | 4.5ns @ 5V, 50pF | 4.3ns @ 5V, 50pF | 4.3ns @ 5V, 50pF | 4.3ns @ 5V, 50pF |
| Operating Temperature | - | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | SOT-953 | SOT-953 | SOT-953 | SOT-953 | SOT-953 |
| Package / Case | SOT-953 | SOT-953 | SOT-953 | SOT-953 | SOT-953 |
