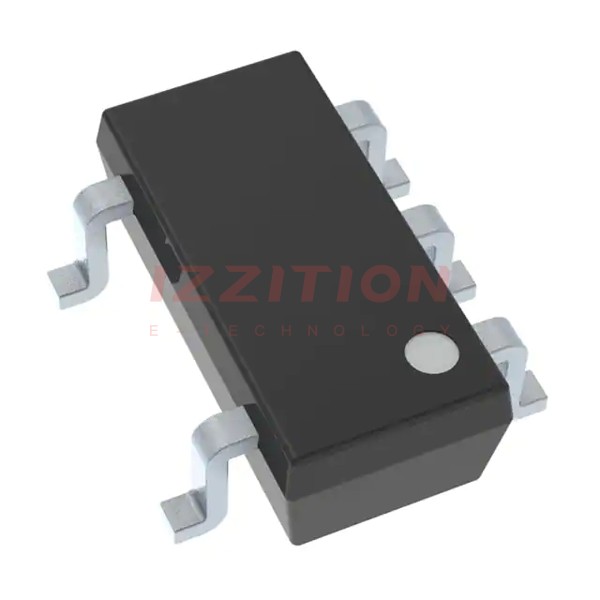

| Part Number | NL17SZ00DBVT1G | NL17SZ10DBVT1G | NL17SZ08DBVT1G | NL17SZ02DBVT1G | NL17SZ04DBVT1G | NL17SZ05DBVT1G | NL17SZ06DBVT1G |
|---|---|---|---|---|---|---|---|
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi | onsemi |
| Product Status | Obsolete | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete |
| Logic Type | NAND Gate | NAND Gate | - | NOR Gate | Inverter | Inverter | Inverter |
| Number of Circuits | 1 | 1 | - | 1 | 1 | 1 | 1 |
| Number of Inputs | 2 | 3 | - | 2 | 1 | 1 | 1 |
| Features | - | - | - | - | - | Open Drain | Open Drain |
| Voltage - Supply | 1.65V ~ 5.5V | 1.65V ~ 5.5V | - | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 1 µA | 1 µA | - | 1 µA | 1 µA | 1 µA | 1 µA |
| Current - Output High, Low | 32mA, 32mA | 32mA, 32mA | - | 32mA, 32mA | 32mA, 32mA | -, 32mA | -, 32mA |
| Logic Level - Low | - | - | - | - | - | - | - |
| Logic Level - High | - | - | - | - | - | - | - |
| Max Propagation Delay @ V, Max CL | 4.3ns @ 5V, 50pF | 7.5ns @ 5V, 50pF | - | 4.3ns @ 5V, 50pF | 4.3ns @ 5V, 50pF | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | - | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | - | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | SC-74A | SC-74 | - | SC-74A | SC-74A | SC-74A | SC-74A |
| Package / Case | SC-74A, SOT-753 | SC-74, SOT-457 | - | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 |
